When the power is always on, you need components that can handle the load. Hirschmann´s compact ST-series rectangular connectors are a very good solution for interior and exterior building automation, power distribution, signal transmission and machine manufacturing applications. The ST-series is also suitable for very demanding power distribution applications such as medical equipment and instrumentation.

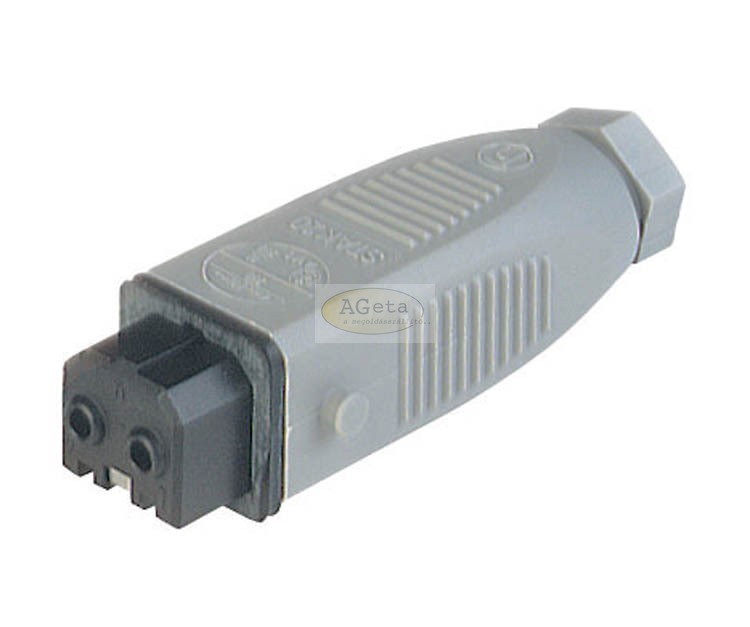

Cable socket with strain relief
| Operating voltage: | 250 V AC/DC (400 V AC 3pin) |
| Working current: | 10 A AC / DC (16 A AC 3pin) |
| Protection class: | IP 54 |
| Pollution severity: | 3 |
| Cable diameter: | 6mm - 12mm |
| Contact plating: | Sn / 5pin Ag |
| Termination: | screw / crimp |
| Terminal diameter: | max. 1,5mm² |
| Temperature range: | -30°C up to +90°C |
| Working current: | 16 A AC / 10 A DC |
| No. of contacts: | 2 + PE |
| Approvals: | UL |
