The general-purpose CA series circular connectors easily handle tough everyday use. Dust, submersion and vibration do not adversely affect the performance for these connectors in hydraulic, pneumatic and special machinery applications. They also meet the need for metal-free housings in chemical industry.

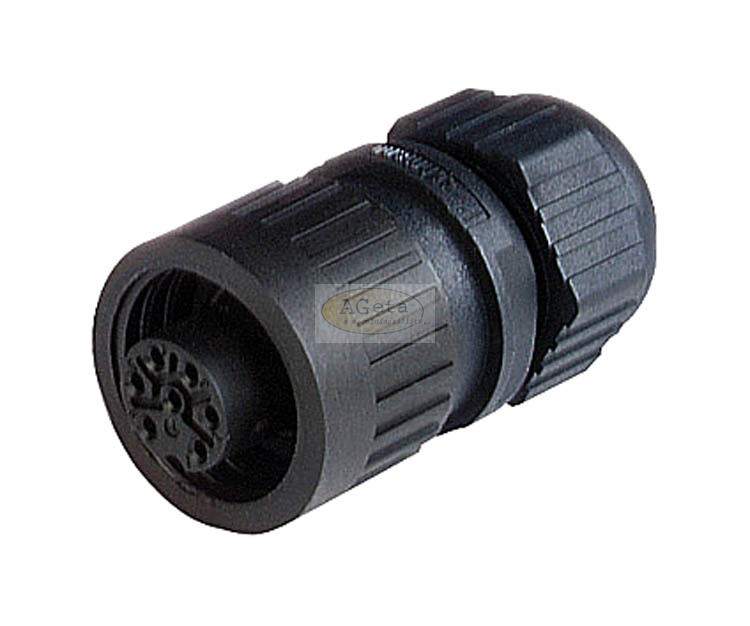

Straight cable socket, integrated strain relief
| Protection class (IEC 60529): | IP 67 |
| Pollution severity. | 3 |
| Cable diameter: | 6mm - 12mm |
| Cable gland: | M 22 x 2 |
| Contact plating: | Ag |
| Contact bearer material: | PA 66-GF 25 |
| Housing material: | PA 66-GF 25 |
| O-ring: | NBR |
| Temperature range: | -40°C up to +90°C |
| Approvals: | UL, VDE |
| No. of contacts: | 6 + Grounding |
| Termination: | solder |
| Cable diameter: | max. 0,75mm² |
| Operating voltage: | 250 V AC/DC |
| Working current: | 10 A AC/DC |
| Contact resistance: | ≤ 5 mΩ |
