Részletek
- Unique cage type female contact - increases conductivity
- Female contact with "solder stop" for ease soldering
- New ground contact - excellent contact integrity between chassis and cable connector
- Customized branding using translucent ring
- Sleek and ergonomic design - valuable and handy
A large amount of accessories is available on request!
| Specification: | |
|---|---|
| Electrical | |
| Voltage rating: | 50 V ac |
| Current rating: | 5.0 up to 16,0 A |
| Dielectric strength: | 1500 V dc |
| Insulation resistance: | ≥ 1GΩ |
| Contact resistance: | ≤ 3mΩ |
| Mechanical | |
| Insertion / withdrawal force: | ≤ 20 N |
| Operating life: | ≥ 1000 mating cycles |
| Max. cable diameter: | 1.0 up to 2.5 qmm |
| Cable diameter: | |
| XX Series | 3.5 - 8.0 mm |
| RX Series | 4.0 - 7.0 mm |
| Environmental | |
| Temperature range: | -30°C up to +80°C |
| Flammability: | UL94HB |
| Solderability: | complies with EC 68-2-20 |
| Materials | |
| Housing: | Zinc diecast (ZnAl4Cu1) or |
| SW Cr plating | |
| Insert: | Polyamide (PA 6.6 30% GF) |
| Contacts: | |
| Male connector: | Brass (CuZn39Pb3) |
| Female connector 3pole: | Bronze (CuSn6) |
| Female connector 4-7pole: | Brass (CuZn39Pb3) |
| Contact plating: | Silver (gal 2 ľm AG) or |
| Gold (gal 0.2 ľm Au over 2 ľm Ni) |
| Dimensions (mm) |
| Item: | No. of contacts: | Housing: | Contacts: |
|---|---|---|---|

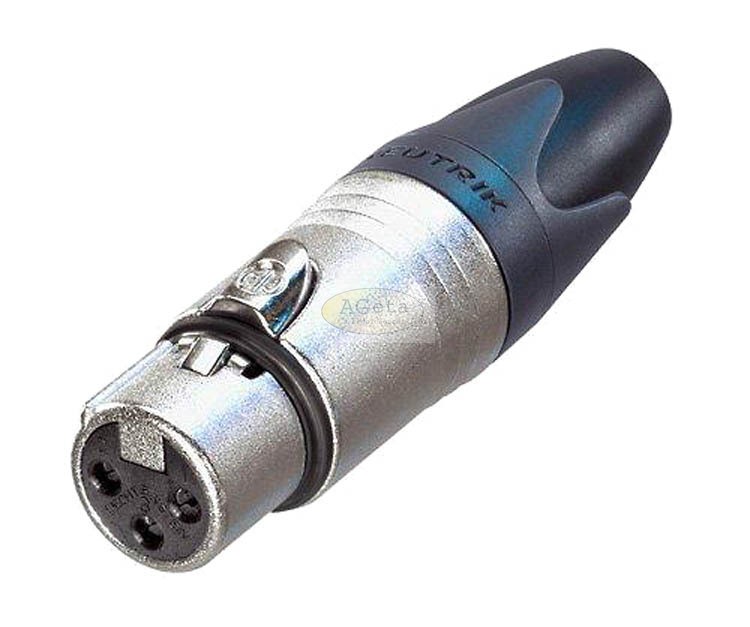

| NC3FXX | 3 | nickel plated | silver plated |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | NEUTRIK |
