Részletek
Low profile
| SPECIFICATION: | |
|---|---|
| Current rating: | 1 A |
| Insulation resistance: | 1000 MΩ min. |
| Contact resistance: | 30 mΩ max. |
| Operation temperature: | -55 °C to +105 °C |
| MATERIAL: | |
| Housing: | PBT UL94V-0 |
| Pins: | Phosphorbronze |
| FINISH: | |
| Contacts: | Tin plated |
| HANDLING: | |
| Processing: | Wave soldering |
| Packing: | Tube |
| TOLERANCE: | |
| .X | ± 0.30 |
| .XX | ± 0.20 |
| Item: | No. of contacts: | A: | B: | C: | D: | E: | F: | PU: |
|---|---|---|---|---|---|---|---|---|

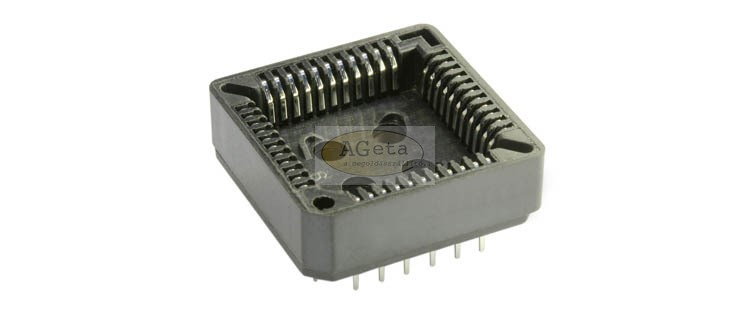

| PLCC32 | 32 | 18.04 | 20.54 | 7.62 | 10.16 | 7.62 | 10.16 | 29 |
