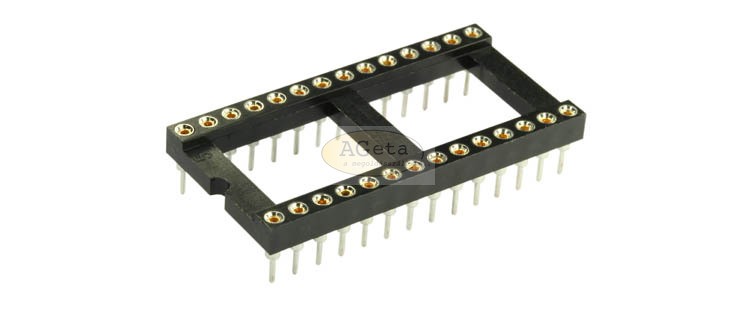

IC sockets with machined pins.
- the open frame version is the most common type
- the open body design gives better access (for cleaning and inspections) to the PC board and better air cooling
- side and end stackable
- high retention design prevents IC walkout during heavy vibrations
- pin design absolutely prevents 100% of the solder wicking and flux entrapment
- twist free construction
- low profile type
Minimum order quantity: 1 PU + multiple
| SPECIFICATION: | |
|---|---|
| Current rating: | 3 A |
| Voltage rating: | 60 V |
| Insulation resistance: | 1000 MΩ min. |
| Contact resistance: | 4 mΩ max. |
| Dielectric voltage: | 500 V AC |
| Operation temperature: | -40 °C to +105 °C |
| MECANICAL: | |
| Insertion force: | ≤ 250 g |
| Extraction force: | ≥ 90 g min. |
| Operating life: | 5000 cycles |
| MATERIAL: | |
| Housing: | PBT UL94V-0 |
| Contacts: | Brass, machined CuZn38Pb2 |
| Clip: | Beryllium copper |
| FINISH: | |
| Contacts: | Tin plated |
| Clip: | Gold Flash |
| HANDLING: | |
| Processing: | Wave soldering |
| Packing: | Tube |
| TOLERANCE: | |
| .X | ± 0.30 |
| .XX | ± 0.20 |
| Item: | No. of contacts: | A: | B: | C: | Central support: | PU: |
|---|---|---|---|---|---|---|
| PZ28CB | 28 | 35.56 | 17.74 | 15.24 | Yes | 17 |
További információk
| Minimálisan rendelhető mennyiség | 17.0000 |
|---|---|
| Gyártó | econ connect |
