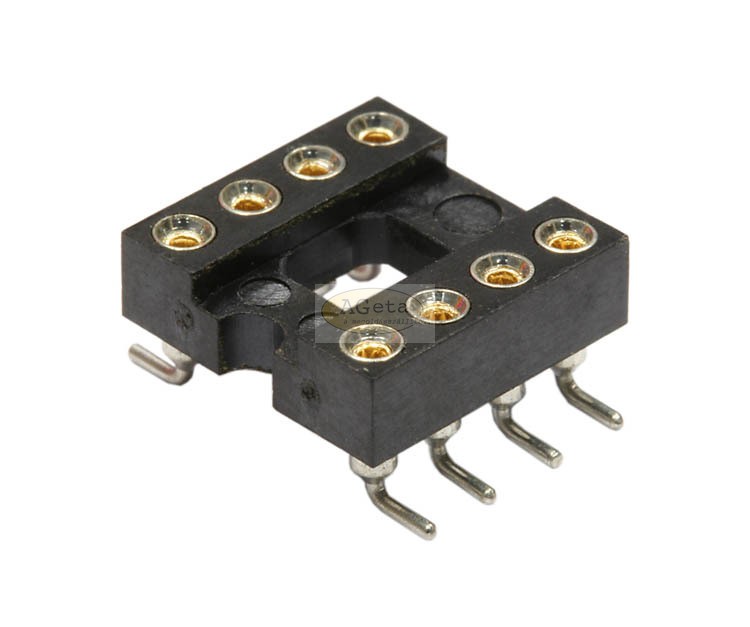

IC-sockets, flat type, with angled machined pins for SMT assembly.
| SPECIFICATION: | |
|---|---|
| Current rating: | 3 A |
| Voltage rating: | 100 V |
| Insulation resistance: | 1000 MΩ min. |
| Contact resistance: | 4 mΩ max. |
| Dielectric voltage: | 1000 V AC |
| Operation temperature: | -40 °C to +105 °C |
| MECANICAL: | |
| Insertion force: | ≤ 250 g |
| Extraction force: | ≥ 90 g min. |
| Operating life: | 200 cycles |
| MATERIAL: | |
| Housing: | PPS UL94V-0 |
| Contacts: | Copper alloy, machined |
| Clip: | Beryllium copper |
| FINISH: | |
| Contacts: | Tin plated |
| Clip: | Gold Flash |
| HANDLING: | |
| Processing: | Reflow soldering |
| Packing: | Tube |
| TOLERANCE: | |
| .X | ± 0.35 |
| .XX | ± 0.25 |
| Item: | No. of contacts: | A: | B: | C: | D: | E: | Central support: |
|---|---|---|---|---|---|---|---|
| MPS14S3B | 14 | 17.78 | 7.62 | 10.16 | 15,25 | 12.42 | No |
További információk
| Minimálisan rendelhető mennyiség | 102.0000 |
|---|---|
| Gyártó | econ connect |
