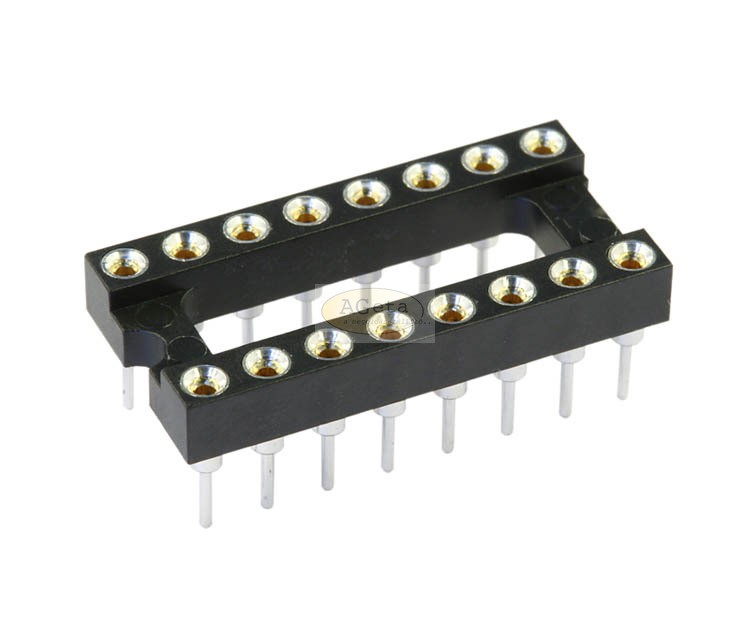

Open frame standard low profile DIL sockets with machined pins - made by preci-dip.
Minimum order quantity: 1 PU + multiple
| Specification: | |
|---|---|
| Insulator: | Glas filled Polyester PCT-GF30-FR |
| Flammability: | UL 94V-0 |
| Contact | |
| Pin: | Brass, CuZn36Pb3 |
| Spring: | Beryllium copper |
| Finish | |
| Pin: | tin plated |
| Spring: | gold plated |
| Dielectric strength: | 1000 V AC |
| Working voltage: | 100 V RMS / 150 V DC |
| Contact resistance: | 10 mΩ max. |
| Ampacity: | 1 A |
| Temperature range: | -55°C up to +125°C |
| Max. Soldering heat: | 260°C for 20 seconds |
| Packaging: | Tube |
| Dimensions (mm) |
| Item: | No. of contacts: | A: | B: | C: | Central support: | PU: |
|---|---|---|---|---|---|---|
| PZ14PD | 14 | 17.7 | 7.62 | 10.1 | No | 29 |
További információk
| Minimálisan rendelhető mennyiség | 29.0000 |
|---|---|
| Gyártó | preci-dip |
