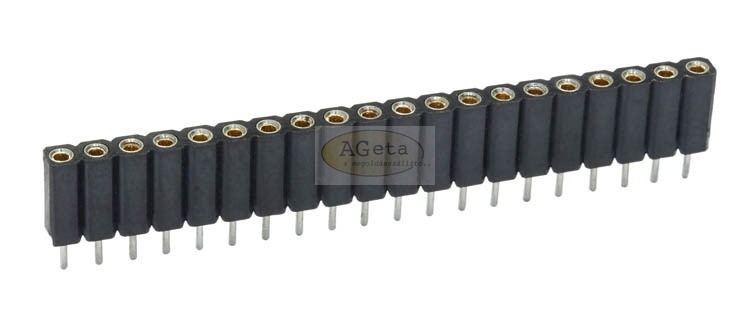

Machine pin socket strips, single row, pitch 2.54 mm
| SPECIFICATION: | |
|---|---|
| Current rating: | 3 A |
| Voltage rating: | 60 V |
| Insulation resistance: | 1000 MΩ min. |
| Contact resistance: | 4 mΩ max. |
| Dielectric voltage: | 500 V AC |
| Operation temperature: | -40 °C to +105 °C |
| MATERIAL: | |
| Housing: | PPS UL94V-0 |
| Contacts: | Brass, machined CuZn38Pb2 |
| Clip: | Beryllium copper |
| FINISH: | |
| Contacts: | Tin plated |
| Clip: | Selective Gold Flash |
| HANDLING: | |
| Processing: | Wave soldering |
| Packing: | Bulk |
| TOLERANCE: | |
| .X | ± 0.25 |
| .XX | ± 0.20 |
| Item: | No. of contacts: |
|---|---|
| MP70S20 | 20 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | econ connect |
