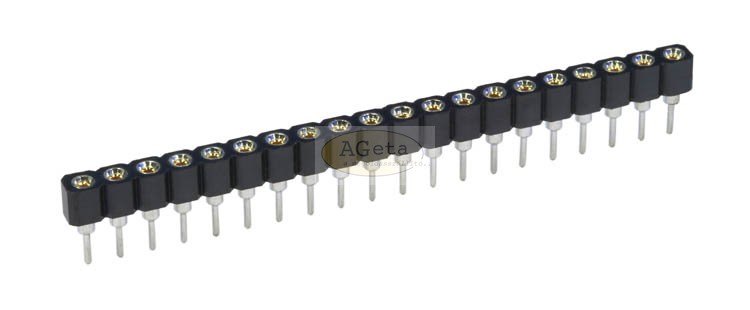

Single row machined pin socket strips, tin plated version, pitch 2.54 mm
| Specification: | |
|---|---|
| Insulator: | PBT 30% GF, UL94V-0, black |
| Ampacity: | 1 A |
| Withstand voltage: | 500 V RMS min. |
| Insulation resistance: | 1000 MΩ min. |
| Contact resistance: | 20 mΩ max. |
| Contact: | Brass, machined |
| Contact spring: | Beryllium copper, gold plated, stamped |
| Temperature range: | -20°C up to +85°C |
| Dimensions (mm) |
| Item: | No. of contacts: | A: | B: |
|---|---|---|---|
| PKB20 | 20 | 50.80 | 48.26 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | N/A |
