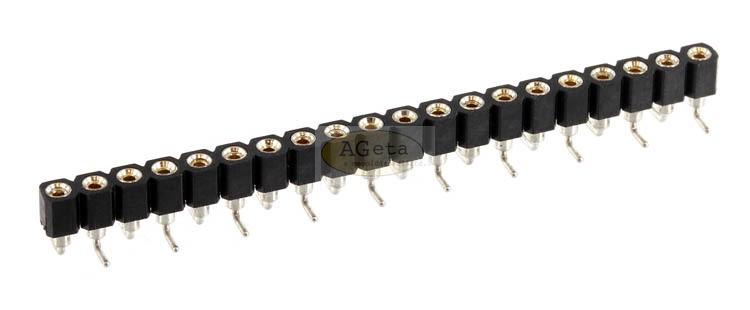

Machined pin socket strips, single row, pitch 2.54 mm
| SPECIFICATION: | |
|---|---|
| Current rating: | 3 A |
| Voltage rating: | 60 V |
| Insulation resistance: | 1000 MΩ min. |
| Contact resistance: | 4 mΩ max. |
| Operation temperature: | -40 °C to +105 °C |
| MECANICAL: | |
| Insertion force: | ≤ 250 g |
| Extraction force: | ≥ 90 g min. |
| Operating life: | 200 cycles |
| MATERIAL: | |
| Housing: | PPS UL94V-0 |
| Contacts: | Brass, machined CuZn38Pb2 |
| Clip: | Beryllium copper |
| FINISH: | |
| Contacts: | Tin plated |
| Clip: | Selective gold flash |
| HANDLING: | |
| Processing: | Wave soldering |
| Packing: | Tube |
| TOLERANCE: | |
| .X | ± 0.25 |
| .XX | ± 0.20 |
| Item: | No. of contacts: |
|---|---|
| SAM30S3A | 3 |
További információk
| Minimálisan rendelhető mennyiség | 100.0000 |
|---|---|
| Gyártó | econ connect |
