The SMC line of versatile connectors offers a great deal of design application flexibility. Different modules (such as the MiniBridge, straight and angled male and female multipin connectors) in combination with other options (e.g. IDC versions) afford users the freedom for an optimal assembly design.
The connectors are reliably produced on state-of-the-art, fully automatic manufacturing machines. Due to the high contact density and small space required, SMC connectors offer a number of new application possibilities. The precision manufactured contact guarantee a reliable mate.
SMC connectors are available in several different heights. The combination of standard profile and low male and female connectors support four different board-to-board stacking heights (8.0 - 14.0 mm).

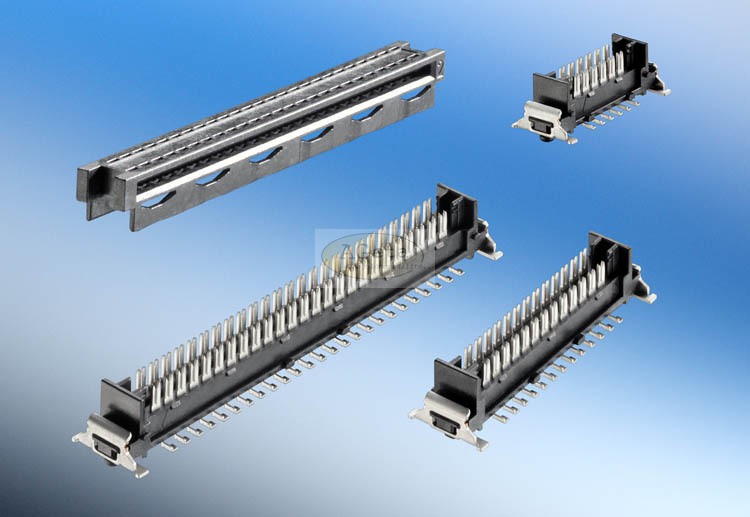

ERNI´s Board-on IDC system offers the possibility to optimize cable connections in two ways. The compact size reduces the required area on the board and it is more cost effective than a conventional female-male connection.
Note that the Board-on connector is to be soldered to the PCB before assembling the cable.
Features
Packing units
Connector = 280 pcs. on reel
Cable guide = 280 pcs. in bag
For further informations please visit our Webshop
The connectors are reliably produced on state-of-the-art, fully automatic manufacturing machines. Due to the high contact density and small space required, SMC connectors offer a number of new application possibilities. The precision manufactured contact guarantee a reliable mate.
SMC connectors are available in several different heights. The combination of standard profile and low male and female connectors support four different board-to-board stacking heights (8.0 - 14.0 mm).
ERNI´s Board-on IDC system offers the possibility to optimize cable connections in two ways. The compact size reduces the required area on the board and it is more cost effective than a conventional female-male connection.
Note that the Board-on connector is to be soldered to the PCB before assembling the cable.
Features
- Number of pins: 12, 26 and 50
- Pitch: 1.27 mm
- Termination PCB: SMT
- Termination Ribbon cable: IDC
- Tape and reel packaging
- Black insulation body and bright contacts for easy visual recognition
- Pick and place pad for handling with vacuum nozzle
- Cable type: AWG 30 (0.635 mm grid)
Packing units
Connector = 280 pcs. on reel
Cable guide = 280 pcs. in bag
For further informations please visit our Webshop
| Specification: | ||
|---|---|---|
| Temperature range: | -55/125°C (IDC versions depends on cable) | |
| Ampacity: | IEC60512 test 5b | at 20°C 1.2 A |
| at 70°C 0.9 A | ||
| at 100°C 0.6 A | ||
| (IDC versions depends on cable) | ||
| Dielectric strength: | IEC 60512 test 4a | Contact - Contact 500 V (IDC depends on cable) |
| Contact resistance: | IEC 60512 test 2a | < 25 mΩ |
| Insulation resistance: | IEC 60512 test 3a | > 104 MΩ (IDC depends on cable) |
| Mechanical operating life: | IEC 60512 test 9a | > 500 mating cycles |
| Insertion and withdrawal force: | IEC 60512 test 13b | 12 Contacts: 6 N max. |
| 26 Contacts: 13 N max. | ||
| 50 Contacts: 26 N max. | ||
| 68 Contacts: 35 N max. | ||
| 80 Contacts: 40 N max. | ||
| Process-conditions: | ||
| Max. hand soldering temperature: | IEC 68-2-20 | 3,5s at 350°C |
| Max. dip soldering temperature: | IEC 68-2-20 | 10s at 260°C |
| Max. SMT-relfow soldering temperature: | IEC 68-2-20 | 10s at 260°C |
| Warning: | soldering of press-fit connectors not to be recommended | |
| Coplanarity: | < 0.1 mm | |
| Operating temperature: | ||
| IDC (Insulated Displacement Connection) | 0/55°C | |
| Materials: | ||
| Housing: | LCP | |
| UL flame protection: | UL 94 V-0 | |
| UL file: | E83005 | |
| Contact and mating area: | ||
| Base material: | Copper alloy | |
| Plating: | Au over Ni | |
| Termination area: | ||
| Base material: | Copper alloy | |
| Solder, press-fit and IDC-technology: | Sn |
| Specification: | |||
|---|---|---|---|
| (differing to SMT male- and female connectors) | |||
| Current rating per contact: | 12 pin | 26 pin | 50 pin |
| 20°C | 1.8 A | 1.6 A | 1.3 A |
| 70°C | 1.1 A | 1.0 A | 0.8 A |
| 100°C | 0.4 A | 0.35 A | 0,3 A |
| Contact resistance: | ≤ 10mΩ | ||
| Max. reflow soldering temperature: | 20 - 40 s at 260°C | ||
| Contact materials: | |||
| Base material: | Copper alloy | ||
| IDC termination area: | 0.5-2 ľm Sn over 2-3 ľm Ni | ||
| PCB termination area: | 4-6 ľm Sn over 2-3 ľm Ni | ||
| Clip materials: | |||
| Base material: | Copper alloy | ||
| Plating: | 4-6 ľm Sn over 2-3 ľm Ni | ||
| Dimensions (mm) |
| Item: | Description: | No. of contacts: | A: | B: | C: | D: |
|---|---|---|---|---|---|---|
| E244628 | Connector | 12 | 6.35 | 12.77 | 14.70 | 11.785 |
