Részletek
PCB pins for direct assembly.
| SPECIFICATION: | |
|---|---|
| Current rating: | 2 A |
| Voltage rating: | 12 V |
| Contact resistance: | 30 mΩ max. |
| Insertion / Extraction Force: | 0.3~3.0 kg |
| Operating life: | 4000 Mating cycles |
| MATERIAL: | |
| Housing: | PBT UL94V-0 |
| Barrel: | Brass |
| Terminal: | Brass |
| FINISH: | |
| Barrel: | Tin plated |
| Terminal: | Tin plated |
| TOLERANCE: | |
| .X | ±0.30 |
| Item: | Description: | Grid: |
|---|---|---|

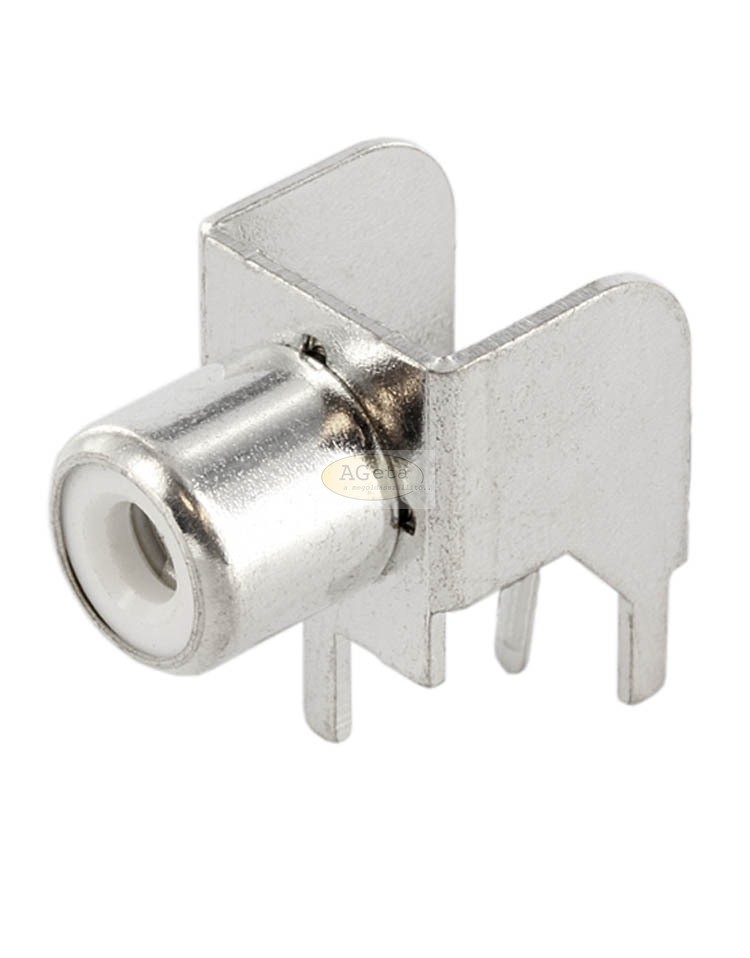

| CBPWS | Metal body, white insulator | 11.0 x 8.8 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | econ connect |
