The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!

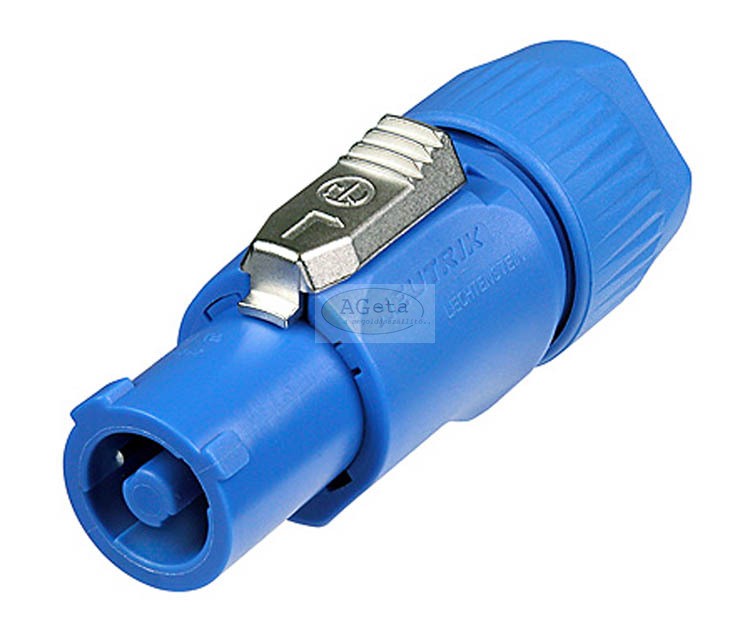

Cable jack, quick lock with securing lever
Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!
- Locking 20 A / 250 V ac appliance coupler
- 3 contacts for line, neutral and premating safety ground
- power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
- Fast and easy twist lock latching system
- Extremely robust and reliable
- Ergonomic design
- User friendly latch design for easy handling
- Unique Neutrik chuck type strain relief
- UL, cUL recognized components
- VDE certified
- SEV approved
- Branded with unique hologram - guarantees genuine and authentic Neutrik product
Cable jack, quick lock with securing lever
| Specification: | |
|---|---|
| Electrical | |
| Voltage rating: | 250 V ac |
| Current rating: | 20 A |
| Dielectric strength: | 4000 V dc |
| Insulation resistance: | ≥ 100MΩ |
| Contact resistance: | ≤ 3mΩ up to ≤ 10mΩ |
| Mechanical | |
| Cable diamter: | 5 - 15 mm |
| Solderability: | complies with IEC 68-2-20 |
| Environmental | |
| Temperature range: | -30°C up to +80°C |
| Protection class: | IP 20 |
| Flammability: | UL94 V-0 |
| Materials | |
| Housing cable jack: | PA 6 30% GR |
| Housing chassis plug | PA 6.6 30% GR |
| Contacts: | CuZn39Pb3 / CuNi1Si0.2 |
| Contact plating: | 4 ľm / 2 ľm Ag plated |
| Specification: | |
|---|---|
| Connection: | Screw mount terminal |
| Cable: | 2.5 mm² / 14 AWG |
| Dimensions (mm) |
| Item: | Description: |
|---|---|
| NAC3FCA | A-Type for Power-In |
