The ERNI Power Tap is designed to bring power to printed circuit board applications. It allows for wire-to-board connections with common terminals. The 6 pin version has three solder pins per row with a two-row PCB layout.
The operating current is determined by characteristics of the PCB and the cable termination. This power supply cable can be connected with a screw mount terminal accomodating M3, M4, 6-32UNC or 8-32UNC screws.
Versions with pressfit solder pins
The operating current is determined by characteristics of the PCB and the cable termination. This power supply cable can be connected with a screw mount terminal accomodating M3, M4, 6-32UNC or 8-32UNC screws.
Versions with pressfit solder pins
| Specification: | |
|---|---|
| Max. hand soldering temperature: | 3.5 s at 350°C |
| Max. dip soldering temperature: | 10.0 s at 260°C |
| Contact: | Cu alloy |
| Surface: | Sn |
| Ampacity: | 40.0 A (20°C) |
| Dimension (mm) |
| Item: | Version: | Screw mount terminal: | Faston termination: |
|---|---|---|---|

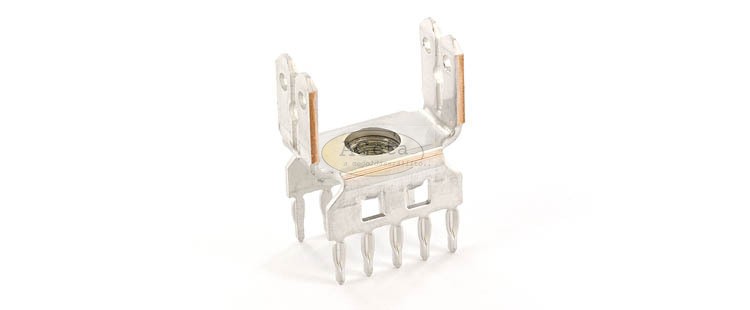

| E134990 | 10 pin pressfit | M4 with nut | 6.3 mm |
