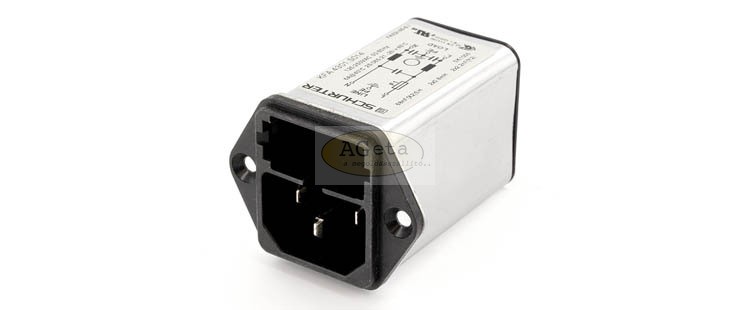

Appliance inlet C14 with filter and fuseholder 5 x 20 mm 1pole, acc. to IEC/EN 60320-1, UL 498, CSA C22.2 no. 42
Screw-on mounting, front side, quick connect terminal
Characteristics
- Plug removal necessary for fuse-link replacement
- the fuse drawer "Fingergrip" can be removed by hand
- Fuse drawer meets requirements of medical standard IEC/EN 60601-1
- the fuseholder is accessible from the equipment front
- qualified for use in equipment acc. IEC/EN 60950
Attention! The fusedrawer 43011405 is not included. Please order separately.
| Specification: | |
|---|---|
| Ratings IEC: | 1-10 A Tu 40°C / 250 VAC; 50 Hz |
| Ratings UL/CSA: | 1-10 A Tu 40°C / 125 VAC; 60 Hz (w/o cover) |
| Leakage current: | standard ≤ 0.5 mA (250 V / 60 Hz) |
| Withstand voltage: | ≥ 1.7 kVAC between L-N |
| ≥ 2.7 kVAC between L/N-PE | |
| Test voltage (2 sec) | |
| Temperature: | -25°C up to 85°C |
| Climatic category: | 25/085/21 acc. IEC 60068-1 |
| Degree of protection: | from frontside IP 40 acc. to IEC 60529 |
| Protection class: | suitable for devices with protection class 1 acc. to IEC 61140 |
| Panel thickness s: | Screw max. 8 mm |
| tightening torque max 0.5 Nm | |
| Housing material: | Thermoplastic black UL 94V-0 |
| Approvals: | |
| VDE: | 40004665 (FKE, FKF, FKV, FKW) |
| UL | E72928 (FKE, FKF, FKV, FKW) |
| Dimensions (mm) |
| Item: | Description: | Rated current: | Terminal: |
|---|---|---|---|
| 43015014 | Side flange, screw-on mounting | 6 A | Quick-connect terminal 6.3 x 0.8 mm |
További információk
| Minimálisan rendelhető mennyiség | 10.0000 |
|---|---|
| Gyártó | Schurter Electronic Components |
