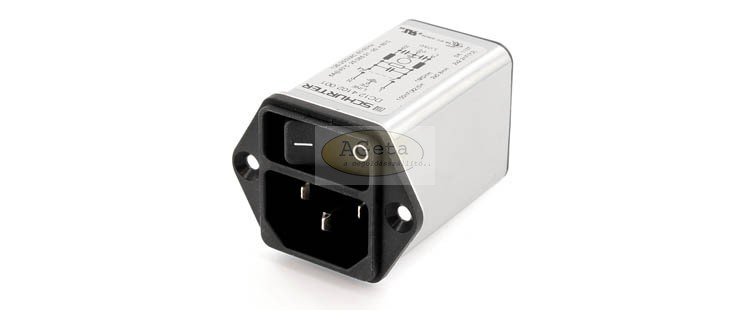

Appliance inlet C14 with filter and switch 2pole, acc. to IEC/EN 60320-1, UL 498, CSA C22.2 no. 42
Screw-on mounting, front side, quick connect terminal
Characteristics
- compact design with optimal shielding
- Marquard switch for high incrush currents
- Line switch non-illuminated
- ideal for application with transient loads
- qualified for use in equipment acc. IEC/EN 60950
| Specification: | |
|---|---|
| Ratings IEC: | 1-10 A Tu 40°C / 250 VAC; 50 Hz |
| Ratings UL/CSA: | 1-10 A Tu 40°C / 125 VAC; 60 Hz (w/o cover) |
| Leakage current: | standard ≤ 0.5 mA (250 V / 60 Hz) |
| Withstand voltage: | ≥ 1.7 kVAC between L-N (1 min/50 Hz) |
| ≥ 2.7 kVAC between L/N-PE | |
| Test voltage (2 sec) | |
| Temperature: | -25°C up to 85°C |
| Climatic category: | 25/085/21 acc. IEC 60068-1 |
| Degree of protection: | from frontside IP 40 acc. to IEC 60529 |
| Protection class: | suitable for devices with protection class 1 acc. to IEC 61140 |
| Panel thickness s: | Screw max. 8 mm |
| tightening torque max 0.5 Nm | |
| Housing material: | Thermoplastic black UL 94V-0 |
| Approvals: | |
| VDE: | 40001522 |
| UL | E72928 |
| Dimensions (mm) |
| Item: | Description: | Rated current: | Terminal: |
|---|---|---|---|
| DC124102001 | Side flange, screw-on mounting | 6 A | Steckanschluss 6,3 x 0,8 mm |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | Schurter Electronic Components |
