Részletek
With switch 1pol (OFF)
| SPECIFICATION: | |
|---|---|
| Insulation resistance: | 100MΩ min. at 500V DC |
| Contact resistance: | 30mΩ max. |
| Max. Capacity: | 500V AC |
| MATERIAL: | |
| Housing: | PA66 |
| Washer: | Paper sheet t1.0, red |
| Nut: | PA66 |
| Metal: | Brass |
| Contact Pin: | Copper alloy |
| FINISH: | |
| Metal: | Nickel plated |
| Contact Pin: | Silver plated |
| TOLERANCE: | |
| .X | ± 0.3 |
| Item: | Diameter: | Switch: | Terminal: |
|---|---|---|---|

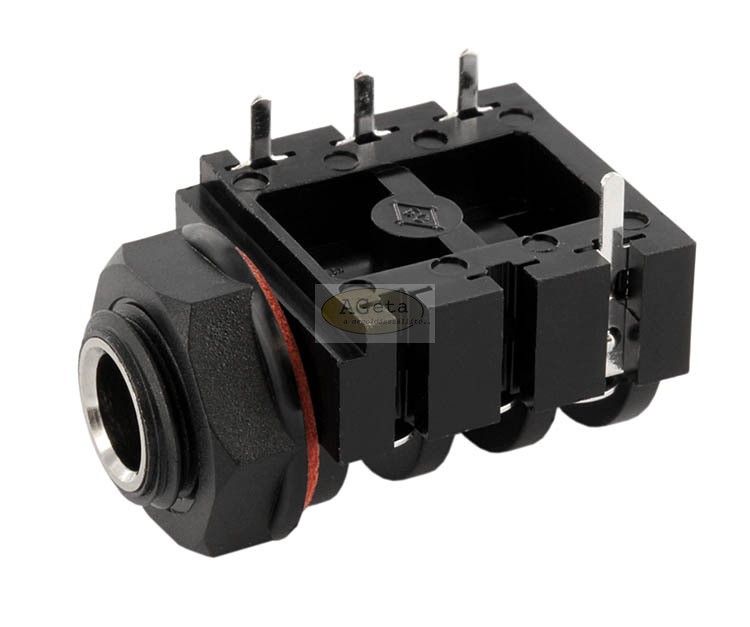

| KBS6OE | 6.3 | 1 x 1pol (OFF) |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | econ connect |
