Részletek
With switch 1 x 2pol (OFF)
| SPECIFICATION: | |
|---|---|
| Insulation resistance: | 100 MΩ min. at 500 V DC |
| Contact resistance: | 30 mΩ max. |
| Dielectric voltage: | 500 V AC |
| MATERIAL: | |
| Housing: | PBT |
| Cover: | PC transparent |
| Insulator: | POM |
| Washer: | 0.5T Steel |
| Nut: | 2.0T Steel |
| Metal: | Brass |
| Terminal: | Copper alloy |
| FINISH: | |
| Washer: | Nickel plated |
| Nut: | Nickel plated |
| Metal: | Nickel plated |
| Terminal: | Silver plated |
| TOLERANCE: | |
| .X | ±0.30 |
| Item: | Diameter: | Terminal: |
|---|---|---|

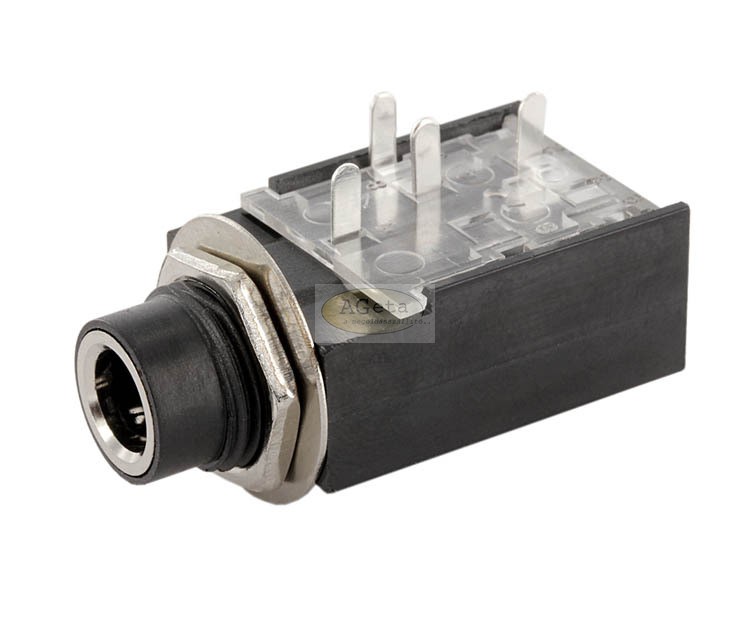

| KBM6GG | 6.3 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | econ connect |
