TOC stands for Telecommunications Outdoor Connectors and offers cabling professionals the reliability and flexibility they need for toughest applications.
Application areas
The TOC series RJ45 coming with the newly available field-assembly RJ45 plug MFP8 CAT.6A and RJ45 keystone AMJ-S Module CAT.6A is available in a set. They can be attached to solid and stranded conductor cables with cable outer diameter max. 9.5 mm on site without the need for any special tools. For line extensions, the TOC Coupler IP68 is your first choice. It can be easily integrated with no negative effects on performance of the connection.
Performance Characteristics
*Operating temperature depending on choice of cable and wire design
Coupler IP68 with AMJ coupler K acc. to IEC 606037-51 (500 MHz)
Application areas
- data- and telecommunication
- security applications
- machine and plant engineering
- process-, utility- and traffic automation
The TOC series RJ45 coming with the newly available field-assembly RJ45 plug MFP8 CAT.6A and RJ45 keystone AMJ-S Module CAT.6A is available in a set. They can be attached to solid and stranded conductor cables with cable outer diameter max. 9.5 mm on site without the need for any special tools. For line extensions, the TOC Coupler IP68 is your first choice. It can be easily integrated with no negative effects on performance of the connection.
Performance Characteristics
- suitable for 10 Gigabit Ethernet acc. to IEE 802.3 an
- suitable for POE+ acc. to IEE 802.3 at
- 360° shielding
- temperature range -40°C to +85°C*
- protection class IP68 acc. to IEC 60529
- protection cap with protection class IP68
*Operating temperature depending on choice of cable and wire design
Coupler IP68 with AMJ coupler K acc. to IEC 606037-51 (500 MHz)
- RJ45 jack to RJ45 jack
- suitable for TOC plug set RJ45 IP68 J60026A0000
| Specification: | |
|---|---|
| Housing material: | Brass, nickel plated |
| Dimensions (mm) |
| Item: | Description: |
|---|---|

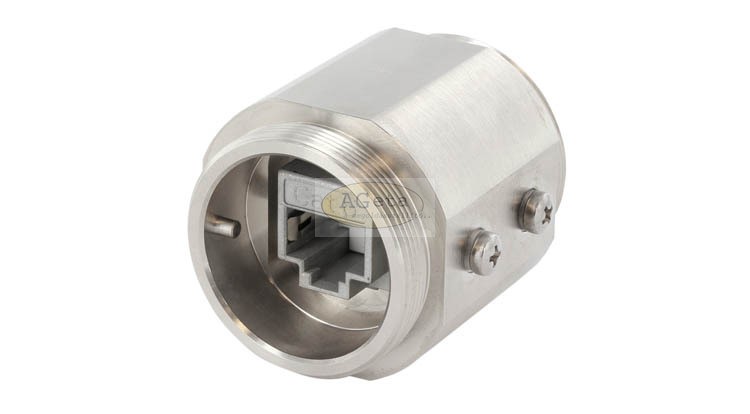

| J60029A0000 | Coupler IP68 AMJ K 2 x RJ45 jack |
