Részletek
| SPECIFICATION: | |
|---|---|
| Current rating: | 1.5 A |
| Insulation resistance: | 1000 MΩ min. |
| Dielectric voltage: | 1000 V AC |
| Operation temperature: | -20 °C to +70 °C |
| Cable to tensile strength: | 5.8 kg max. |
| MATERIAL: | |
| Housing: | Polycarbonate UL94V-2 |
| Contacts: | Copper alloy |
| Shield: | Brass |
| FINISH: | |
| Contacts: | Gold plated 3 ľ" |
| Shield: | Nickel plated |
| HANDLING: | |
| Packing: | Bulk |
| Item: | Description: | Positions: | Conductors: |
|---|---|---|---|

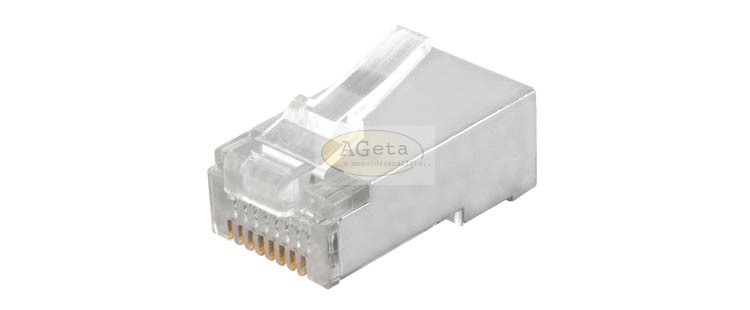

| MPL8/8RG | Plug without cable boot | 8 | 8 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | econ connect |
