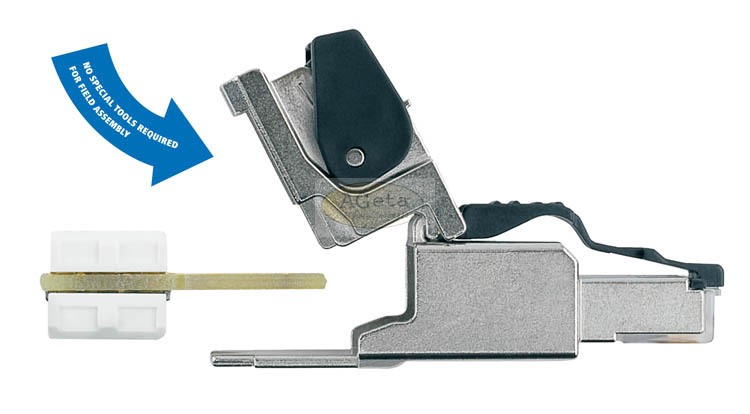

The MFP8 Cat.6A is the RJ45 plug for time-saving and efficient on-site assembly for all networks, from Voice right through to 10 Gigabit Ethernet. It can be assembled on all standard types of cable in just 60 seconds and no special tools are required.
Thanks to its compact design and suitablility for multiport applications, the MFP8 Cat.6A can also be used where space is at an absolute premium. The 360° shielding and full metal housing guarantee secure and reliable data transmission, including with 10 Gigabit Ethernet and even with outside electric interference.
* Approval of cable by Telegärtner Karl Gärtner GmbH
| Specification: | |
|---|---|
| Categorie 6A according: | ISO/IEC 11801:2010 |
| Connector according to: | IEC 60603-7-51 |
| Operating life: | ≥ 750 Mating cycles |
| Contact plating: | Ni1,2Au0,8 |
| Shielding housing: | Zinc diecast nickel plated |
| Cu conductor diameter: | |
| solid: | 0.41 - 0.64 mm |
| stranded: | 0.46 - 0.78 mm |
| Core diameter: | 0.85 - 1.6 mm |
| Outer diameter: | 5.5 - 9.0 mm |
| Reusable IDC: | ≤ 4 cycles |
| Temperature range: | -40 °C up to +85 °C |
| Power supply: | High Power over Ethernet plus (PoE+) |
| Protection class: | IP20 |
| Item: | Description: | Solid: | Stranded 7: | Stranded 19*: |
|---|---|---|---|---|
| J00026A2000 | MFP8 Cat.6A T568A | AWG 24/1 - 22/1 | AWG 27/7 - 22/7 | AWG 24/19 - 22/19 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | Telegärtner |
