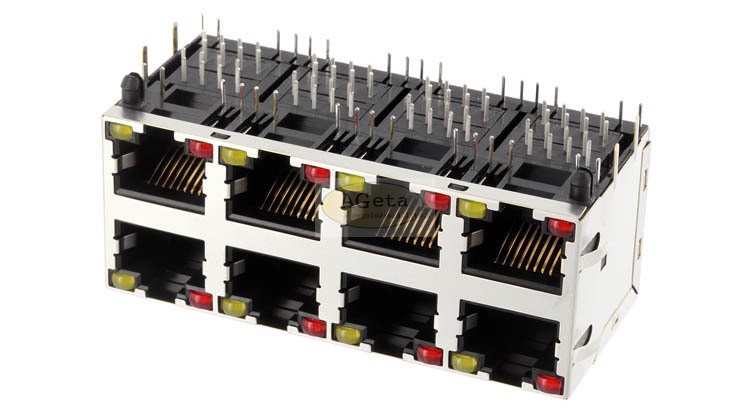

Stacked RJ45 (8P8C), shielded, gold plated contacts, with 2 LEDs per port
Further LED configurations are available on request!
| Specification: | |
|---|---|
| Current rating: | 1.5 A |
| Insulation resistance: | 1000 MΩ min. |
| Contact resistance: | 20 mΩ max. |
| Dielectric voltage: | 1000 V AC |
| Operation temperature: | 0 °C to +70 °C |
| Housing: | PA66 UL94V-0 |
| Contacts: | Phosphorbonze, selective gold plated |
| Solder pins: | Phosphorbronze, tin over nickel |
| Shield: | Brass, nickel plated |
| Processing: | Wave soldering |
| Packing: | Tray |
| Item: | No. of Ports: | LED 1 (right): | LED 2 (left): |
|---|---|---|---|
| MJ45D2X4RC | 2 x 4 | yellow | red |
