Részletek

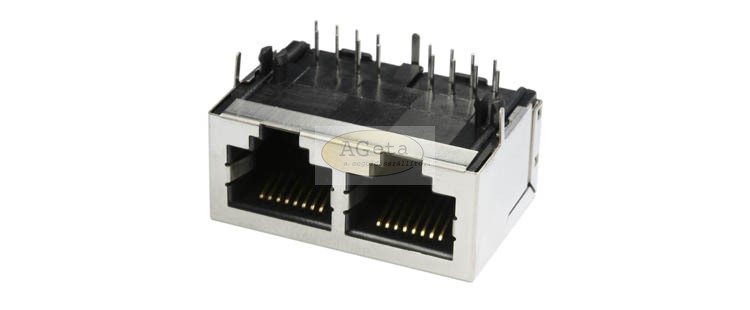

2 x RJ45 (8P8C), gold plated contacts
| SPECIFATION: | |
|---|---|
| Current rating: | 1.5 A |
| Insulation resistance: | 500 MΩ min. |
| Contact resistance: | 40 mΩ max. |
| Dielectric voltage: | 1000 V AC |
| Operation temperature: | 0 °C to +70 °C |
| MATERIAL: | |
| Housing: | PBT UL94V-0 |
| Contacts: | Phosphorbonze |
| Solder pins: | Phosphorbronze |
| Shield: | Brass |
| FINISH: | |
| Contacts: | Gold over nickel |
| Solder pins: | Tin over nickel |
| Shield: | Nickel plated |
| HANDLING: | |
| Processing: | Wave soldering |
| Packing: | Tray |
| TOLERANCE: | |
| .X | ± 0.38 |
| .XX | ± 0.25 |
| Item: | No. of ports: |
|---|---|
| 3012S02 | 2 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | econ connect |
