Features:
- meets EIA/TIA Cat.6 standard when terminated to Cat.6 compliant cable
- load bar for ease of assembly
| Specification: | |
|---|---|
| Housing material: | Plastic, UL 94-V0 |
| Contact: | Copper alloy |
| Contact plating: | Gold plated in contact area (1,27ľm) |
| Schirm: | Copper alloy, nickel plated |
| Ampacity: | 1.5 A |
| Withstand voltage: | 150 VAC max. |
| Conductor: | Solid or stranded wire |
| Operating life: | ≥ 1000 mating cycles |
| Temperature range: | -40°C up to +85°C |
| Item: | Description: | CableØ: | Positions: | Conductors: | Bel Stewart-Item-No: |
|---|---|---|---|---|---|

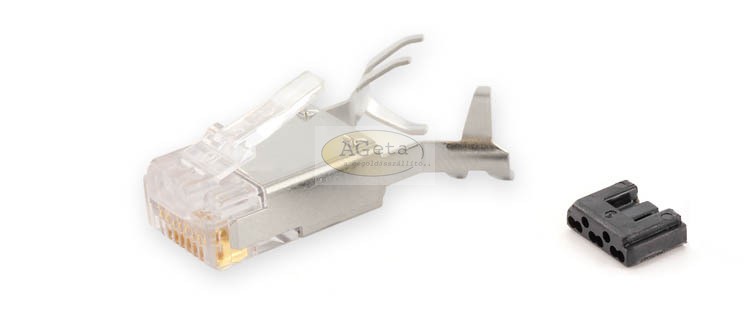

| SS39AK | Plug set w/o cable boot | ≤ 6.0 mm | 8 | 8 | SS-39200-012 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | BEL Stewart |
