Features:
- meets EIA/TIA Cat.5e standard when terminated to Cat.5e compliant cable
- staggered contact design reduces crosstalk
- pre-inserted conductor management bar
| Specification: | |
|---|---|
| Housing material: | Plastic, UL 94-V0 |
| Contact material: | Phosphor bronze |
| Contact plating: | gold plated in contact area (1,27ľm) |
| Shield: | Brass, tin plated |
| Ampacity: | 1.5 A |
| Withstand voltage: | 150 VAC max. |
| Conductor type: | solid wire or stranded |
| Operating life: | ≥ 1000 mating cycles |
| Temperature range: | -40°C up to +85°C |
| Item: | Description: | Positions: | Conductors: |
|---|---|---|---|

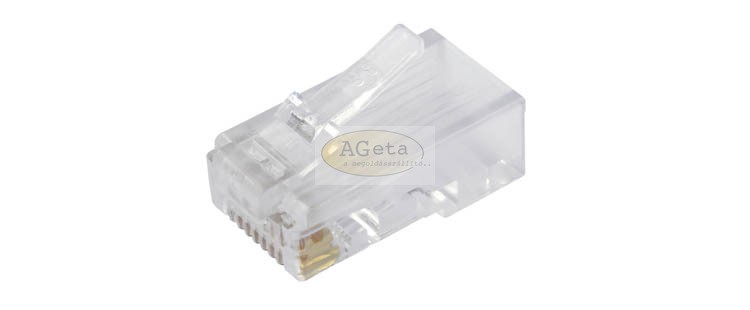

| SS37000002 | One-piece plug | 8 | 8 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | BEL Stewart |
