Features:
- meets EIA/TIA Cat.5e standard when terminated to Cat.5e compliant cable
- staggered contact design reduces crosstalk
- conductor management bar for easy assembly
- reliable crimped ferrule grounding system
| Specification: | |
|---|---|
| Housing material: | Plastic, UL 94-V0 |
| Contact: | Phosphorbronze |
| Contact plating: | Gold plated in contact area (1,27ľm) |
| Shield: | Brass, tin plated |
| Ampacity: | 1.5 A |
| Withstand voltage: | 150 VAC max. |
| Type of conductor: | Solid or stranded wire |
| Operating life: | ≥ 1000 mating cycles |
| Temperature range: | -40°C up to +85°C |
| Item: | Description: | Positions: | Conductors: | Bel Stewart-Item-No: |
|---|---|---|---|---|

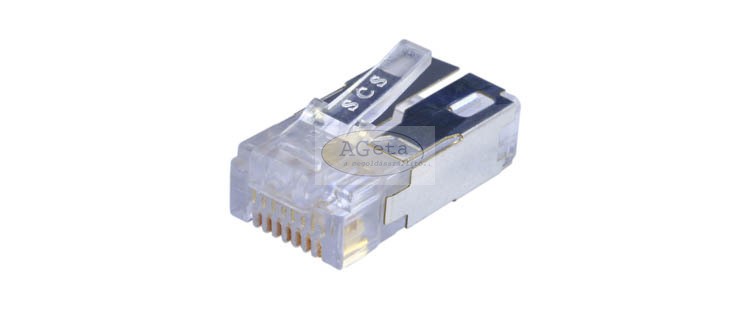

| 943SP5E | Plug without cable boot | 8 | 8 | 943-SP-370808SM2-FS-B1000 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | BEL Stewart |
