Részletek
| Specification: | |
|---|---|
| Housing material: | Thermoplastic, UL 94V-0 |
| Contact/Shield material: | Copper alloy |
| Contact plating: | Gold plated in contact area |
| Ampacity: | 1.5 A |
| Withstand voltage: | 150 VAC max. |
| Operating life: | ≥ 1000 mating cycles |
| Temperature range: | -40°C up to +85°C |
| Dimensions (mm) |
| Item: | Orientation: | Contact plating: | Positions: | Conductors: | Max. Soldering temperature: |
|---|---|---|---|---|---|

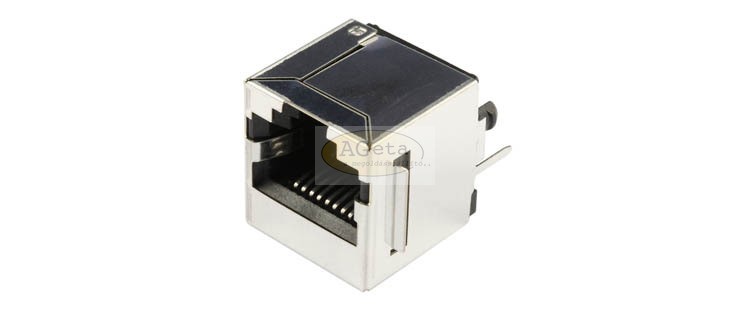

| SS650810SAFL | vertical | gold plated 0.76 ľm | 10 | 8 | 220 °C |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | BEL Stewart |
