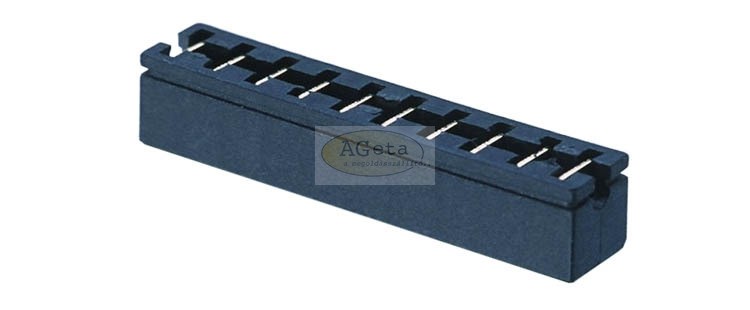

Multi jumper, open version
| SPECIFICATION: | |
|---|---|
| Current rating: | 3 A |
| Insulation resistance: | 5000 MΩ min. |
| Contact resistance: | 10 mΩ max. |
| Dielectric voltage: | 1000 V AC |
| Operation temperature: | -40 °C to +105 °C |
| MATERIAL: | |
| Housing: | PBT UL94V-0 |
| Contacts: | Brass |
| Packing: | Bulk |
| TOLERANCE: | |
| .X | ± 0.35 |
| .XX | ± 0.25 |
| Item: | No. of contacts: | Colour: |
|---|---|---|
| MSH10GB | 2 x 5 | black |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | econ connect |
