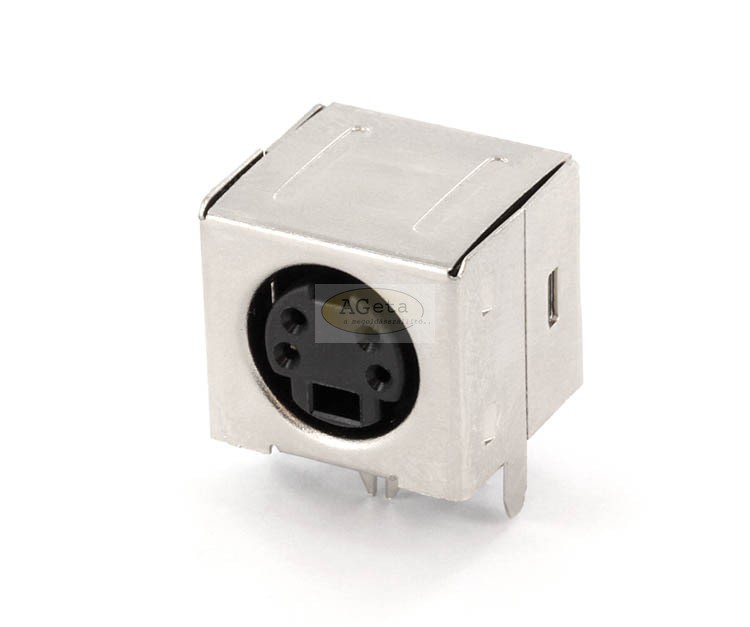

Shielded multipole chassis sockets, PCB pins.
| SPECIFICATION: | |
|---|---|
| Current rating: | 1 A |
| Voltage rating: | 30 V DC |
| Insulation resistance: | 1000 MΩ min. |
| Contact resistance: | 30 mΩ max. |
| Dielectric voltage: | 500 V AC |
| Operation temperature: | -20 °C to +80 °C |
| MATERIAL: | |
| Housing: | PBT UL94V-0 |
| Contacts: | Copper alloy |
| Solder pins: | Copper alloy |
| Shield: | Metal |
| FINISH: | |
| Contacts: | Gold Flash |
| Solder pins: | Tin plated |
| Shield: | Nickel plated |
| HANDLING: | |
| Processing: | Wave soldering |
| Packing: | Tray |
| TOLERANCE: | |
| .X | ± 0.38 |
| .XX | ± 0.25 |
| Item: | No. of contacts: |
|---|---|
| MDIOB4G | 4 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | econ connect |
