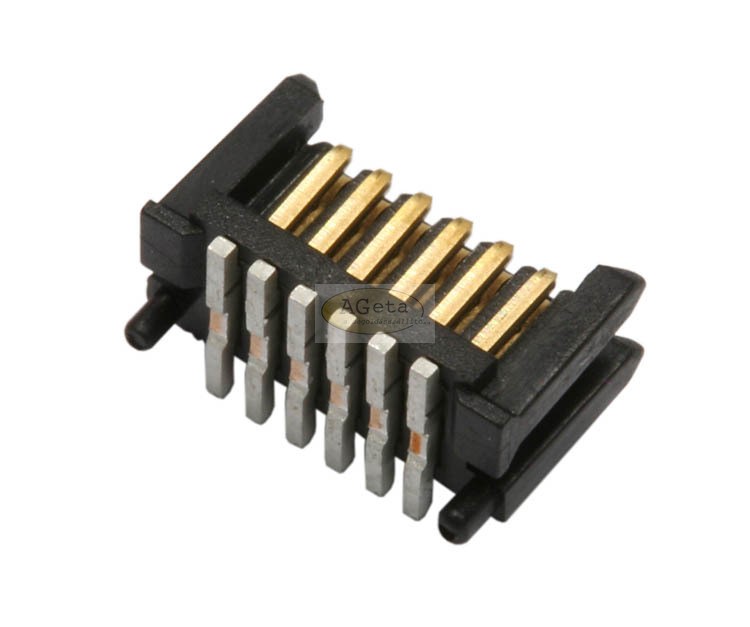

The SMT connector series MicroStac with 0.8 mm pitch and with SMT termination is based on a hermaphroditic design. As result of this the male and the female connector are identical. The same style for male and female connector meet the requirement for a economical connector solution in modern application in electronics. The dual-sided PCB application contact principe provides for a tilt-proof and insertion-proof connector position on the PCB. The gripper surface is integrated within the insulator body. This obviates the need for the standard assembly hood. Optionally, versions featuring positioning pegs are also available. Using the MicroStac a board-to-board height from 5.0 mm up to 6.5 mm is achieved.
| Insulator: | PA 46 UL 94-V0 |
| Max. hand soldering temperature: | 3.5 s at 350°C |
| Max. SMT-reflow soldering heat: | 10 s at 260°C |
| Contact: | Cu alloy |
| Surface: | Au |
| Ampacity: | 1.2 A (20°C) |
| Withstand voltage: | 500 V AC / 1 Minute |
| Contact resistance: | ≤ 10 mΩ |
| Insulation resistance: | ≥ 10 GΩ |
| Board-to-board Height: | 5.0 mm |
| Weight: | approx. 0.18 g (6pin) |
| Packaging: | Tape&Reel |
| E114711 | 6 pin with peg | 1500 |
