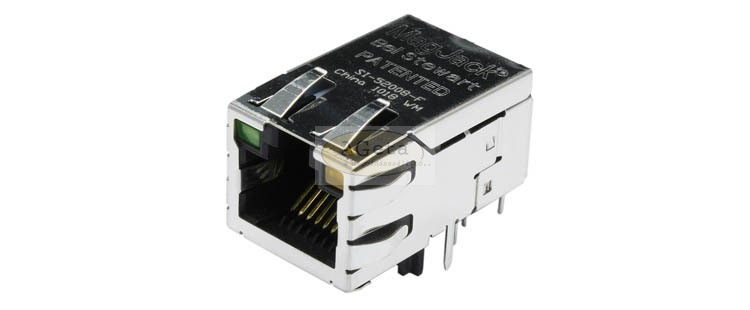

Single-port RJ45 (8P8C) jack, shielded, 10/100Base-TX
Features:
- 4 cores
- 2 LED per port
| Specification: | |
|---|---|
| Housing material: | Thermoplastic, UL 94V-0 |
| Contact material: | Copper alloy |
| Contact plating: | Gold plated (1,27ľm) |
| Shield: | Copper alloy |
| Shield plating: | Nickel plated |
| Current rating: | 100 mA |
| Voltage rating: | 150 VAC |
| Dimensions (mm) |
| Item: | LED 1 (right) | LED 2 (left) |
|---|---|---|
| SI52008F | yellow | green |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | BEL Stewart |
