The MagJack® brand is a comprehensive portfolio of integrated devices that combine Bel Stewart connectors and magnetics to provide the signal conditioning, EMI supression and signal isolation previously performed by multiple (7+) discrete components.
Each MagJack employed reduces PCB real estate use by more than 50% per RJ port.

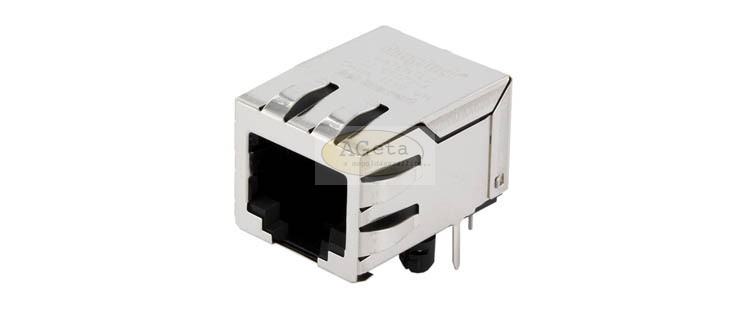

Single-port RJ45 (8P8C) jack, shielded
Features:
Each MagJack employed reduces PCB real estate use by more than 50% per RJ port.
Single-port RJ45 (8P8C) jack, shielded
Features:
- 5 cores, Auto-MDIX, CM termination
| Specification: | |
|---|---|
| Housing material: | Thermoplastic, UL 94V-0 |
| Contact: | Copper alloy |
| Contact plating: | Hard gold plating (1.27ľm) |
| Shield: | Copper alloy |
| Shield plating: | Nickel plated |
| Current rating: | 100 mA |
| Voltage rating: | 150 VAC |
| Dimensions (mm) |
| Item: | Description: |
|---|---|
| SI60123F | without LED |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | BEL Stewart |
