Today, sensors and actuators in the field frequently are connected to a passive I/O box or one with fieldbus capability. The harsh influences of the environment on these boxes make proven and, particularly, tightly sealed (IP65/IP67) connectors a necessity. The M12 connector system already had established themselves in the field of sensor technology. Meanwhile, the M12 connector also is recommended as a fieldbus connector for almost all field bus applications. To make sure that nothing gets mixed up, there are a series of codes for assistance.

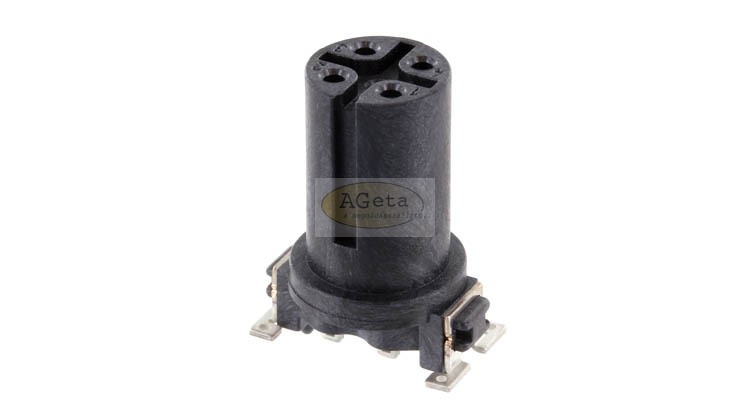

M12 pcb female connector SMT
Features- assembly height 9/13mm (front panel to pcb)
- T&R, roll with 100 pcs.
MOQ = 100 pcs| Temperature range: | | -55/125°C |
| Ampacity: | IEC60512 test 5b | at 20°C 4.8 A |
| | at 40°C 4.1 A |
| | at 70°C 2.5 A (8pin 2,0 A) |
| Dielectric strength: | IEC 60512 test 4a | 4pin 1400 V eff / 5pin 1000 V eff |
| | 8pin 650 V eff |
| Contact resistance: | IEC 60512 test 2a | < 10 mΩ |
| Insulation resistance: | IEC 60512 test 3a | > 1012 MΩ |
| Operating life: | IEC 60512 test 9a | > 100 mating cycles |
| Insertion and withdrawal force: | IEC 60512 test 13b | 23 N max. |
| Max. hand soldering temperature: | IEC 68-2-20 | 3,5s at 350°C |
| Max. dip soldering temperature: | IEC 68-2-20 | 10s at 260°C |
| Max. SMT-relfow soldering temperature: | | 20-40s at 260°C |
| Protection class: | | IP67 |
| Housing: | | LCP |
| UL flame protection: | | UL 94 V-0 |
| Contact and mating area: | | |
| Base material: | | Copper |
| Contact area: | | gold plated |
| Termination area: | | gold plated (male), Sn (female) |
| E224064 | Female PCB connector | A | 5 |
