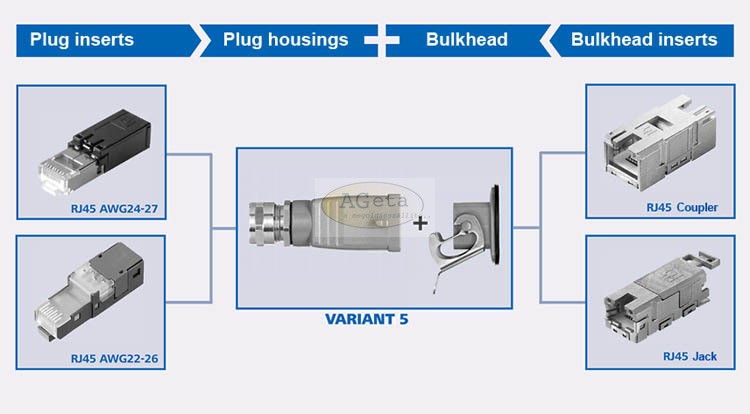

The connectors of variant 5 (Heavy Duty Connector), mostly common from the railway supply industry, wind power and mechanical engineering feature a secure and easy locking using a bail. The connectors of variant 5 are standardized in the IEC 61076-3-106, designed to meet the demands of harsh industrial environments, guaranteeing IP67 class protection whether mated or unmated (using the IP67 protection cap).
Performance Characteristics- variant 5 acc. to ISO/IEC 61076-3-106
- protection class IP67
- rugged aluminium diecast housing
- storage of cable with diameter 6...12 mm
- pre-assembled plugs and set products for simple mouting
- simple mounting of bulkheads with 2 screws
- rubber security strip at the protection cap
Outlets are also available on request| H80030A0006 | Protection cap f. bulkheads | Aluminium diecast |
