The standard for application-neutral wiring in industrial premises ISO/IEC 24702 stipulates the connector of variant 4. This, extraordinary space saving connector provides a Gigabit-link to the machine while having the same installation dimensions as a 4-way M12 connector. The connectors of variant 4 are standardized in the IEC 61073-3-106, designed to meet the demands of harsh industrial environments, guaranteeing IP67 class protection whether mated or unmated (using the IP67 protection cap).
Performance Characteristics- variant 4 acc. to ISO/IEC 61076-3-106
- protection class IP67
- available with RJ45 Cat.6 and Cat.6A insert (FO insert on request)
- rugged PA-housing
- storage of cable with diameter 5...10 mm
- pre-assembled plugs and set products for simple mouting
- simple mounting of bulkheads trough a central screwed gland or four screws
- with bend protection to prevent cables from being excessively bent
- rubber security strip at the protection cap
- colour codings available
- bay for marking labels
Outlets and FO-connectors are also available on requestPA-housing variant 4.

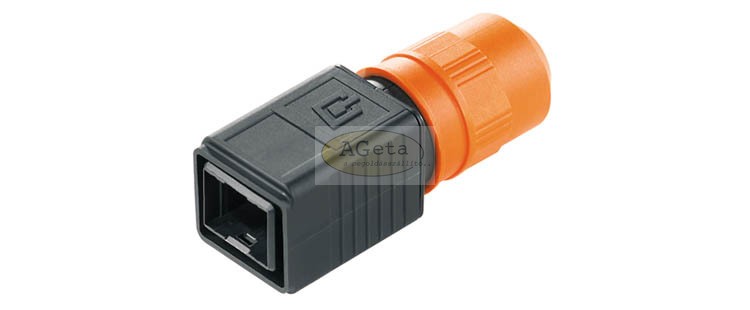

| H86011A0011 | Plastic | without bend protection |
