For the installation of data Networks as per CDV IEC 61918 Ed.2.0 IEC 61784-5 and PROFINET system guide, Telegätner recommends for harsh environments the Push-Pull connector of Variant 14 acc. to PAS IEC 61076-3-117. Moreover this connector series is compliant to the requirements of AIDA (Automation Initiative of the German Automotive Industry) guaranteeing protection class IP67. The modular principle - which is used on all connectors with STEADYTEC-Technology - allows us to offer a wide range of products. Benefit from maximum flexibility and choose the insert you need.
Performance Characteristics

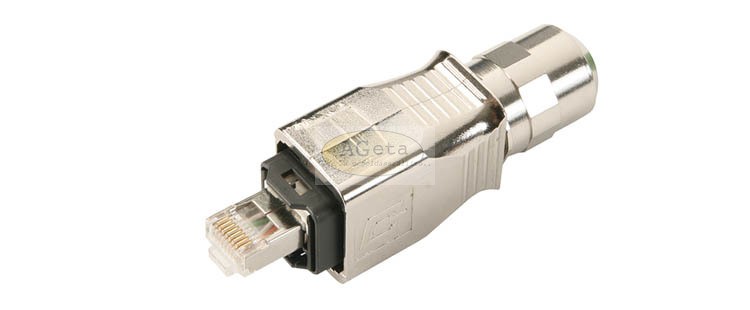

RJ45 plug set Cat.6 with zinc diecast housing.
Detailed origin datasheets you will get online
Performance Characteristics
- Variant 14 acc. to PAS IEC 61076-3-117
- protection class IP67
- rugged zinc-diecast housing, nickel-plated
- plug housing suitable for cables with diameter 5-10 mm
- pre-assembled plugs and set products for simple assembly
- bulkhead version having round cutout for central screw mounting
- bulkhead version having rectangular cutout for mounting with M3 screws
RJ45 plug set Cat.6 with zinc diecast housing.
Detailed origin datasheets you will get online
| Item: | Solid/Stranded: | Remarks: | Housing: |
|---|---|---|---|
| J80026A0019 | AWG24-27 | w/o bend protection | metal |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | Telegärtner |
