The RJ45 connectors acc. to ISO/IEC 60603-7-5 are available in two designs. The 8-way Cat.6 connector for stranded wire cables AWG22-26 or solid wire cables AWG22-26 can easily be assembled on-site without any special tools. The maximum cable diameter is 8.5 mm. The connector features the EIA/TIA A, B and Profinet coding and a 360° shielding connection. The small and robust zinc diecast housing can also ge supplemented with a colour coding. The 8-way Cat.6 connector for stranded wire cables AWG24-27 and solid wire cables AWG24-27 completes the product line. Assembled with a crimp tool it offers shield connection and a wire presorting for easy handling, too. The strain relief pressure is thereby absorbed by the cable jacket. This avoids deformation of wires. Retrofit, 2-part cable boots in different colours are available additionally. Both connectors are capable for use in patch panels, switches, etc. Suitable crimp tools for professional application round-off the product range.
RJ45 plugs Cat.6, IP20

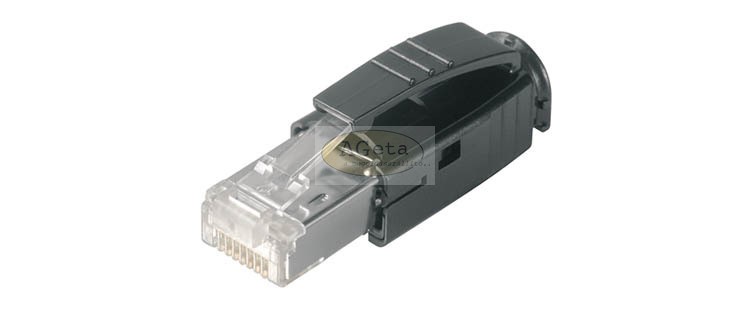

| RJ45 plug AWG22-26 | RJ45 plug AWG24-27 |
| Insertion force: | ≤ 100 N | ≤ 100 N |
| Operating life: | ≥ 750 Mating cycles | ≥ 750 Mating cycles |
| Contact: | CuSn | Phosphorbronze |
| Contact plating: | 0.75ľ Au to 2ľ Ni | Ni2.54Au0.8 |
| Housing material: | Zinc diecast | PCs UL94 V0 |
| Insert: | PA | PCs UL94 V0 |
| Cable boot: | PA | PVC UL94 V0 or PA6 UL94 V0 |
| Cu-conductor Ø solid: | 0.4 - 0.64 mm | 0.36 - 0.51 mm (AWG27/1-24/1) |
| Cu-conductor Ø stranded: | 0.48 - 0.76 mm | 0.46 - 0.61 mm (AWG27/7-24/7) |
| Core diameter: | up to 1.6 mm | 0.85 - 1.05 mm |
| Overall cableØ: | 5.5 - 8.5 mm | 5.5 - 7.3 mm |
| Shielding housing: | - | 0.5 mm Brass, 2ľm Nickel |
| Crimp tool: | tool-free assembly | N00001A0002 (on request) |
| Temperature range: | -40°C up to +80°C | -40°C up to +80°C |
| Contact resistance: | ≤ 20mΩ | ≤ 20mΩ |
| Insulation resistance: | ≥ 500 MΩ | ≥ 500 MΩ |
| Withstand voltage: | | |
| Contact - Contact: | ≥ 1000 V | ≥ 1000 V |
| Contact - Shield: | ≥ 1500 V | ≥ 1500 V |
| Working current: | 1 A | 1 A |
| J80026A0001 | AWG24-27 | with cable boot black |
