Részletek

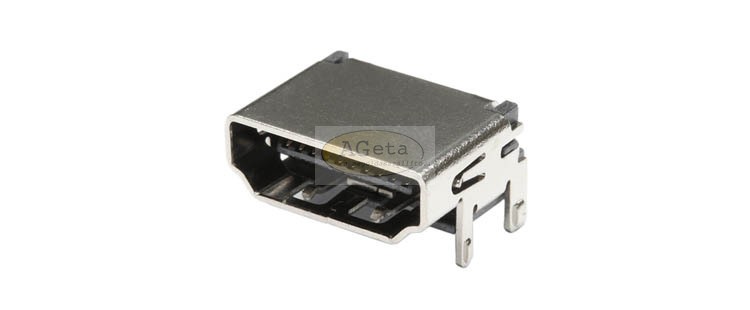

Female connector with SMT termination, right angled, housing DIP.
| Specification: | |
|---|---|
| Housing material: | Thermoplastic UL94V-0, black |
| Contact: | Brass |
| Contact plating: | Gold plated in contact area, solder pins tin plated |
| Housing material: | Brass |
| Current rating: | 0.5 A |
| Withstand voltage: | 100 V AC / 1 Minute |
| Insulation resistance: | 1000 MΩ min. |
| Contact resistance: | 50 mΩ max. |
| Temperature range: | -25°C up to +85°C |
| Dimensions (mm) |
| Item: | Description: | Mounting: |
|---|---|---|
| HDMI5SDH | SMT, Shell DIP | without flange |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | N/A |
