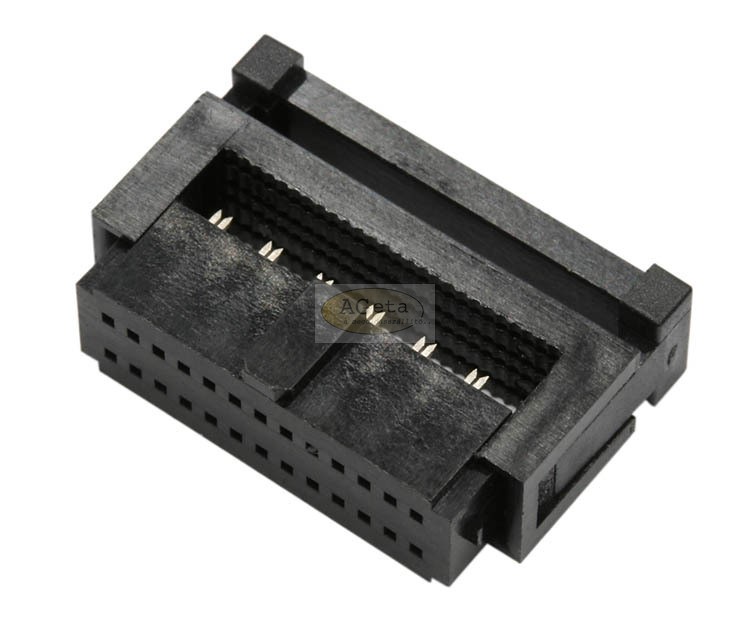

Double row IDC socket for flatcable 0.635 mm including strain relief. Pitch 1.27 x 2.54 mm, colour black.
| SPECIFICATION: | |
|---|---|
| Current rating: | 0.5 A |
| Insulation resistance: | 1000 MΩ min. |
| Contact resistance: | 30 mΩ max. |
| Dielectric voltage: | 300 V AC |
| Operation temperature: | -55 °C to +105 °C |
| MATERIAL: | |
| Housing: | PBT UL94V-0 |
| Pins: | Brass |
| FINISH: | |
| Contacts: | Gold plated |
| HANDLING: | |
| Packing: | Tube |
| TOLERANCE: | |
| .X | ± 0.20 |
| .XX | ± 0.15 |
| Item: | No. of contacts: | A: | B: | C: |
|---|---|---|---|---|
| IDC50S11 | 50 | 36.65 | 33.75 | 30.48 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | econ connect |
