Részletek
Pitch 2.54 x 2.54 mm, Class 3 ≥ 50 mating cycles
Other classes and pin length 4.5 mm are available on request!
| Specification: | |
|---|---|
| Contacts: | Copper alloy, gold plated |
| Insulator: | PBT 20% GF, VO-UL94, grey |
| Voltage rating max.: | 1000 V AC / 1 Minute |
| Current rating: | 1 A |
| Contact resistance: | 20 mΩ max. |
| Insulation resistance: | 5000 MΩ at 100 V |
| Temperature range: | -40°C up to +105°C |
| Pin length: | 2.9 mm |
| Dimensions (mm) |
| Item: | No. of contacts: | A: | B: |
|---|---|---|---|

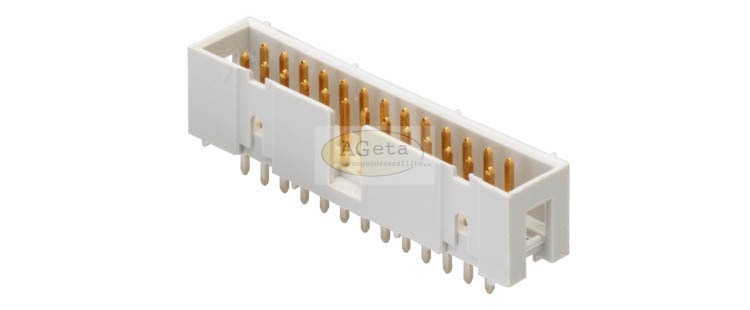

| WS40GWS | 40 | 57.66 | 48.26 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | speed |
