In the case of modern boards with SMT population, 2.0 mm H.M. ERmet thru hole reflow (THR) female connectors have been developed. The connectors have been designed for fully automatic SMT assembly. Safe positioning before the SMT soldering process is ensured by means of kinked terminations.
For fully automatic feed-in into the automatic assembly machines, the connectors are supplied in a tray packing. The high temperature resistant thermoplastic of the insulation body allows for use of all standard reflow processes.
Detailed datasheets are available on request!
For fully automatic feed-in into the automatic assembly machines, the connectors are supplied in a tray packing. The high temperature resistant thermoplastic of the insulation body allows for use of all standard reflow processes.
Detailed datasheets are available on request!
| Specification: | |
|---|---|
| Materials: | |
| Insulator: | LCP |
| Contact: | Cu alloy |
| Finish: | |
| Contact area: | gold plated |
| Termination area: | tin plated |
| Working current: | 1.5 A (20°C) |
| Class: | 2 ≥ 250 mating cycles |
| Dimensions (mm) |
| Item: | Description: | No. of contacts: | PU: |
|---|---|---|---|

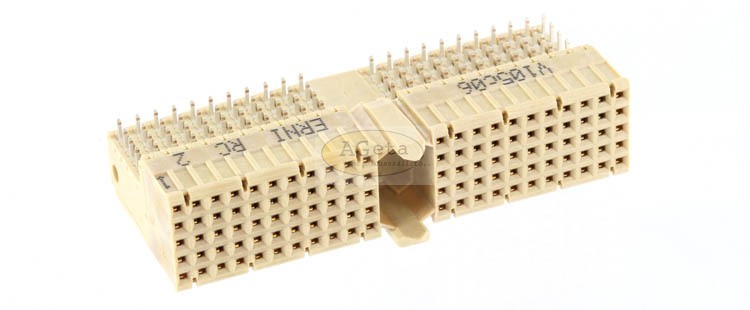

| E124698 | Type A without shield | 110 | 32 |
További információk
| Minimálisan rendelhető mennyiség | 32.0000 |
|---|---|
| Gyártó | ERNI Electronics |
