The ERmet B8 connectors are designed in accordance with the Standard PICMG EXP.0 CompactPCI Express.

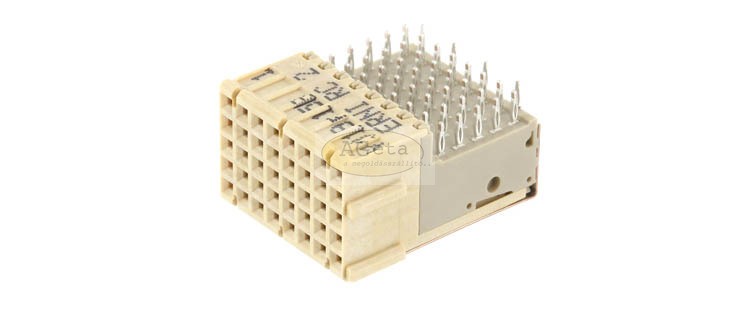

The ERmet B8 enriched hard metric (eHM) connector is used for carrying I/O Signal and some power. The connector is keyed and four different key combinations are possible. All combinations Support HOT Swap functions. The eHM connector (ERmet B8) with coding for reliable mating is available as a 56pin male connector (40 Signal contacts and 16 additional shield blades) as well as 40pin female connector.
Features
No. of contacts: 40 signal contacts
Termination: Pressfit
The ERmet B8 enriched hard metric (eHM) connector is used for carrying I/O Signal and some power. The connector is keyed and four different key combinations are possible. All combinations Support HOT Swap functions. The eHM connector (ERmet B8) with coding for reliable mating is available as a 56pin male connector (40 Signal contacts and 16 additional shield blades) as well as 40pin female connector.
Features
- Pitch 2.0 mm
- Pressfit Termination
- Housing material male connector: PBT
- Housing material female connector: LCP
- Performance class 2
- Tray packaging
No. of contacts: 40 signal contacts
Termination: Pressfit
| Item: | Description: | Board Type: | Key Designatior: | PU: |
|---|---|---|---|---|
| E204975 | B8 | RI/O | F1 | 96 |
További információk
| Minimálisan rendelhető mennyiség | 96.0000 |
|---|---|
| Gyártó | ERNI Electronics |
