| SPECIFICATION: | |
|---|---|
| Current rating: | 1 A |
| Insulation resistance: | 1000 MΩ min. |
| Contact resistance: | 30 mΩ max. |
| Dielectric voltage: | 500 V AC |
| Operation temperature: | -20 °C to +85 °C |
| MATERIAL: | |
| Insulator: | Thermoplastic UL94V-0 |
| Shell: | Steel |
| Contacts: | Copper alloy |
| FINISH: | |
| Contacts: | Gold Flash |
| Shell: | Nickel plated |
| HANDLING: | |
| Processing: | Wave soldering |
| Packing: | Tray |
| TOLERANCE: | |
| .X | ± 0.30 |
| .XX | ± 0.20 |
| Item: | Description: | Version: |
|---|---|---|

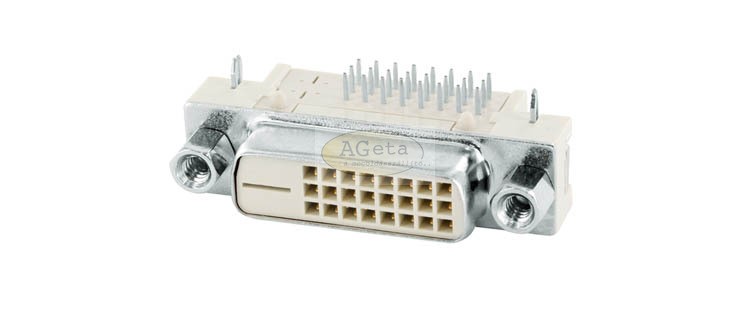

| DVID | digital | right angled, with threaded bolts UNC4/40 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | econ connect |
