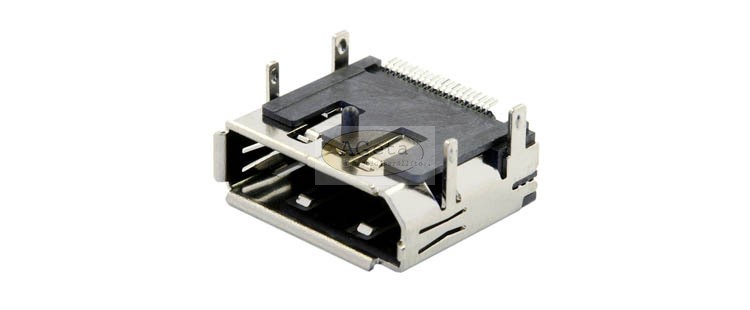

Socket, right angled SMT mount, housing DIP
- transferrate up to 10.8Gbps are possible
- high dissolution of 2560 x 1600 and 2048 x 1536
- colour depth 30/36-bit
- packaged in tray
| Specification: | |
|---|---|
| Insulator: | Thermoplastic UL94V-0, black |
| Contact: | Copper alloy |
| Contact plating: | 15 ľ" Gold |
| Housing material: | Copper alloy |
| Voltage rating: | 40 V AC |
| Current rating: | 500 mA per pin |
| Temperature range: | -25°C up to +85°C |
| Dimensions (mm) |
| Item: | Description: | Mounting: |
|---|---|---|
| DPRS20ICC | SMT, shell DIP | without flange |
