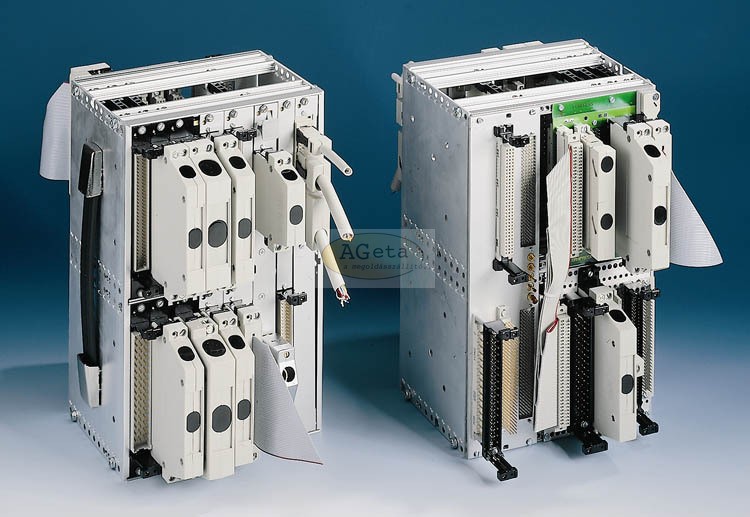

This cable housing family meets the demand for a fully-insulated compact housing suitable for holding either the male or female half of connectors DIN 41612.
The mechanical protection provided by the cable housings makes these PCB-related connectors suitable for all kind of electrical interfaces. They can be used as board-to-wire connectors, as coding or test plugs or as plug-in jumper connections.
Features
Cable connector housing suitable for:
Housing width 15.24 mm
The mechanical protection provided by the cable housings makes these PCB-related connectors suitable for all kind of electrical interfaces. They can be used as board-to-wire connectors, as coding or test plugs or as plug-in jumper connections.
Features
- A strong, fully insulated housing
- Exclusion of any mechanical stress on the multi-pin connectors during insertion, operation and withdrawal
- Three alternative cable outlet positions
- Reliable strain-relief
Cable connector housing suitable for:
- Male or female connectors types B, C, D, H11, Q, R
- Female connectors type H15
Housing width 15.24 mm
| Item: | Description: | For type: |
|---|---|---|
| E173117 | Adaptor for fitting type B or Q |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | ERNI Electronics |
