Részletek
Vertical type
| SPECIFICATION: | |
|---|---|
| Current rating: | 5A |
| Voltage rating: | 12 V DC / 100 V AC |
| Insulation resistance: | 100 MΩ min. at 250 V DC |
| Contact resistance: | 30 mΩ max. |
| Dielectric voltage: | 500 V AC |
| Insertion / Extraction Force: | 0.3~3.0 kg |
| Operating life: | 5000 Mating cycles |
| MATERIAL: | |
| Housing: | PBT |
| Barrel: | Copper alloy |
| Terminal: | Brass |
| FINISH: | |
| Barrel: | Nickel plated |
| Terminal: | Silver plated |
| TOLERANCE: | |
| .X | ±0.30 |
| Item: | Diameter pin (A): |
|---|---|

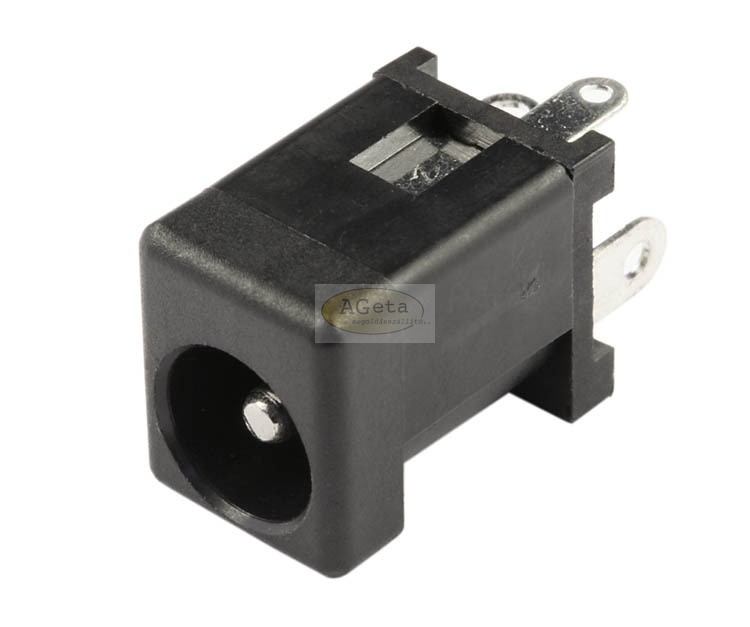

| DC13JD20 | 2.0 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | econ connect |
