| SPECIFICATION: | |
|---|---|
| Current rating: | 1 A |
| Insulation resistance: | 500 MΩ min. |
| Contact resistance: | 30 mΩ max. |
| Dielectric voltage: | 500 V AC |
| Operation temperature: | -40 °C to +70 °C |
| MATERIAL: | |
| Insulator: | PBT white UL94V-0 |
| Shell: | Steel |
| Pins: | Brass |
| FINISH: | |
| Contacts: | Gold Flash |
| Front shell: | Nickel plated |
| Rear shell: | Tin plated |
| HANDLING: | |
| Processing: | Hand solering |
| Packing: | Tray |
| TOLERANCE: | |
| .X | ± 0.20 |
| .XX | ± 0.10 |
| Item: | No. of contacts: | A: | B: | C: | G: |
|---|---|---|---|---|---|

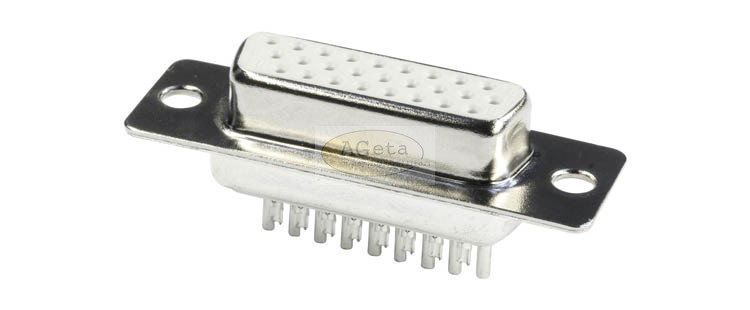

| BU15HD | 15 | 30.85 | 25.00 | 16.40 | 2.29 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | econ connect |
