Részletek

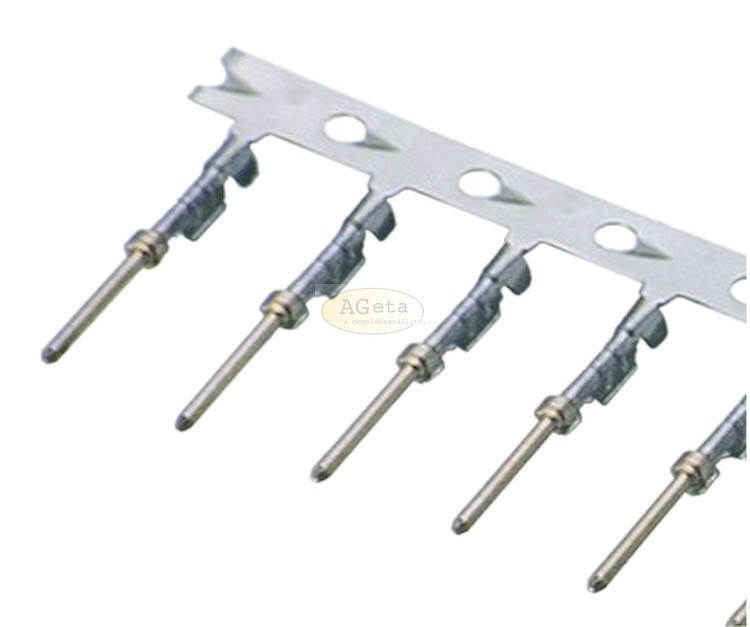

Male contacts
| SPECIFICATION: | |
|---|---|
| Current rating: | 3 A |
| Contact resistance: | 13 mΩ max. |
| Dielectric voltage: | 500 V AC |
| Wire range: | AWG24-26 |
| Insulation outer diameter: | 1.5 mm max. |
| Operation temperature: | -55 °C to +105 °C |
| MATERIAL: | |
| Contact: | Brass |
| FINISH: | |
| Contact: | Gold Flash |
| HANDLING: | |
| Packing: | Reel with 10K, otherwise 100 pcs and multiple cut |
| TOLERANCE: | |
| .X | ± 0.25 |
| .XX | ± 0.20 |
| Item: | Description: |
|---|---|
| SHCR10K | 10.000 pcs male contact on reel |
További információk
| Minimálisan rendelhető mennyiség | 10000.0000 |
|---|---|
| Gyártó | econ connect |
