Részletek

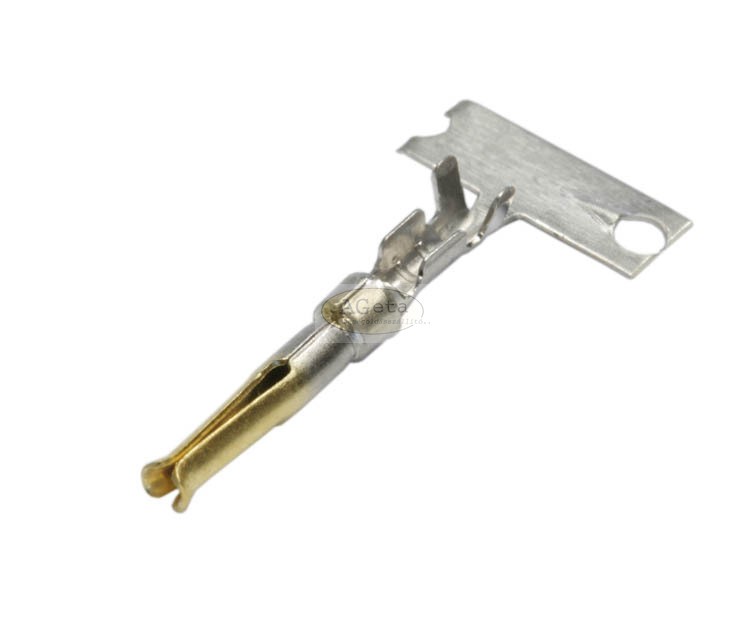

Female contacts
| SPECIFICATION: | |
|---|---|
| Current rating: | 1 A |
| Contact resistance: | 30 mΩ max. |
| Dielectric voltage: | 500 V AC |
| Wire range: | AWG24-26 |
| Insulation outer diameter: | 1.5 mm max. |
| Operation temperature: | -40 °C to +70 °C |
| MATERIAL: | |
| Contact: | Brass |
| FINISH: | |
| Contact: | Gold Flash |
| HANDLING: | |
| Packing: | Reel with 10K, otherwise separately cut |
| Item: | Description: |
|---|---|
| CKB/10K | 10.000 pcs female contacts on reel |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | econ connect |
