Részletek
- Tin plated solder cups
- Insulator polycarbonat
| Specification: | |
|---|---|
| Temperature range: | -65°C up to +125°C |
| Permissible humidity: | Annual average ≤ 80%, max. 100% |
| Creepage and clearance: | ≥ 1.0 mm |
| Withstand voltage: | |
| Contact/Contact: | 1000 Veff |
| Contact/Ground: | 1200 Veff |
| Insulation resistance: | ≥ 5 x 109Ω |
| Shock and vibration proofness: | none discontinuity at 20 g and 10 up to 2000Hz |
| Shock resistance: | up to 50 g |
| Metal protective collar: | Tinned steel, MR St 4, 11+ ľm Ni, 8±2 ľm SN |
| Insulator: | PBT 30% GV, PC 30% GV |
| Inflammability: | Non flammable according to UL 94 V-0 |
| Comperative creepagefigure to the DIN IEC 112 for PBT: | CTI 275 / CTI 175 M |
| Operating life: | Performance level 2 ≥ 200 mating cycles |
| Specification: | |
|---|---|
| Working current: | 5.0 A max. |
| Contact resistance: | ≤ 10 Ω |
| MOQ: | 1 pcs |
| Dimensions (mm) |
| Item: | No. of contacts: | A: | B: | C: | D: | E: | H: | J: | M: | N: | PU: |
|---|---|---|---|---|---|---|---|---|---|---|---|

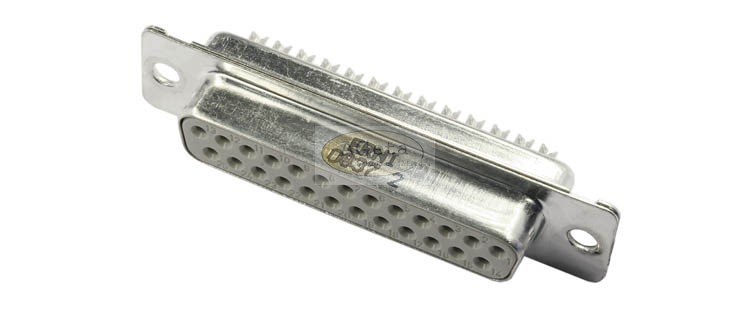

| E004620 | 15 | 39.1 | 24.7 | 33.3 | 8.0 | 12.5 | 27.5 | 10.8 | 7.2 | 10.87 | 45 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | ERNI Electronics |
